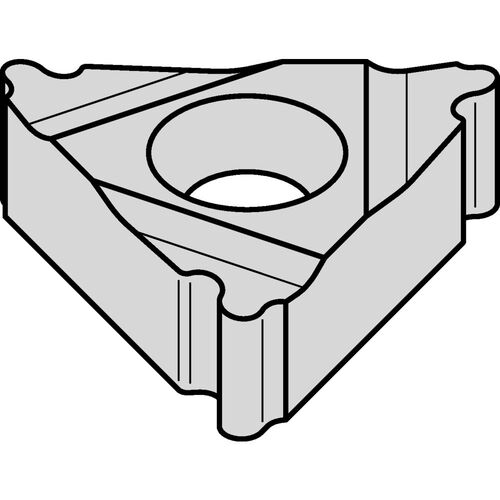

3EL8RD TN6025 Laydown Threading Insert
| Inscribed Circle Diameter (IC) | 3/8″ | Mounting Style | Screw Held |
| Insert Length (INSL) | 0.65″ | Cutting Direction (HAND) | Left Hand |
| Threads per Inch (TPI) | 8 | Chip Breaker Type | None |
| Corner Radius (RE) | 0.03″ | Angle | 15 Degrees |
| Insert Thickness (S) | 0.135″ | Tool Type | Full Threading Insert |
| Grade | TN6025 | Cutting Depth Maximum (CDX) | 0.06″ |
| Cutting Edge Material | Carbide | Hole Diameter | 0.155″ |
| Cutting Position | External |
