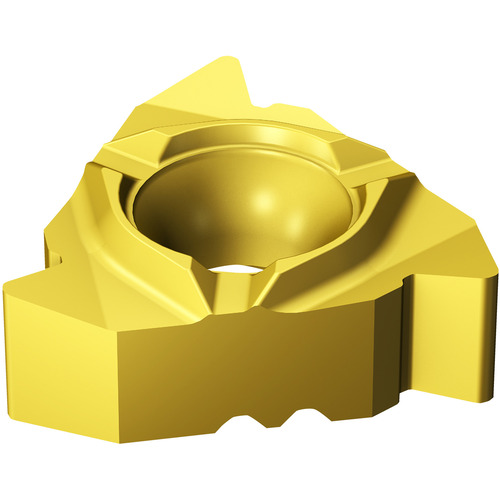

266RG16VM01F002E 1135
Laydown Threading Insert ; 9.52 mm IC ; Carbide ; 1135
Additional Tariff Surcharge of 8 %
| Inscribed Circle Diameter (IC) | 9.52 mm | Insert Style | 266RG-16VM01F002E |
| Corner Radius (RE) | 0.2 mm | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 3.97mm | Cutting Item Count (CICT) | 1 |
| Grade | 1135 | Thread Pitch Minimum (TPN) | 1.5 mm |
| Cutting Edge Material | Carbide | Thread Pitch Maximum (TPX) | 3 mm |
| Cutting Position | External | Hole Diameter | 4.4 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Length
3.75000
Package Width
1.75000
Package Height
.50000
Package Weight
0.119
