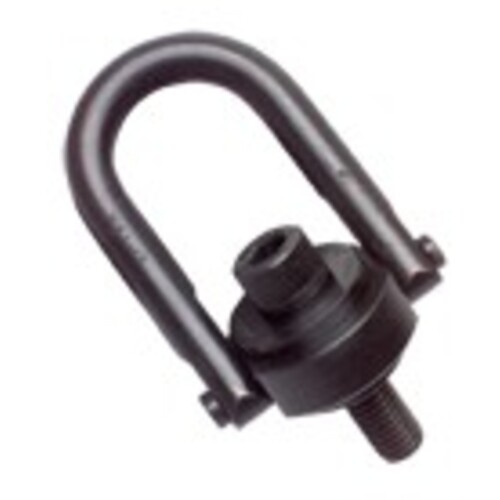

Hoist Ring - 5/8″-11; 1.03″ Thread Length; 4,000 lbs Rating Load; 4.78″ Overall Length
| Type | Hoist Ring | Overall Length | 4.78″ |
| Pivot Angle | 180° | Overall Width | 3.52″ |
| Swivel Angle | 360° | Thread Length | 1.03″ |
| Load Capacity | 4,000 lbs | Torque | 60 feet/lbs |
| Ball Diameter | 3/4″ | Weight | 2 lbs / 7 oz |
| Thread Size | 5/8″-11 | External Radius | 3 1/4″ |
| Base Diameter | 1.99″ | Radius | 0.88″ |
| Base Height | 1.22″ |
Product Features
| Remarks | •Safety Engineered Hoist Rings •Industry Standard •These hoist rings are for heavy lifting and are designed to replace conventional lifting hardware and devices that have been outmoded by new safety regulations. •360° Swivel •180° Pivot •5:1 Safety Factor. •Precision machined lifting bail. •Accepted on many Government, Aerospace and Automotive specifications. •Heat treated alloy steel. Black oxide corrosion resistant finish. | Country of Origin | USA |
Shipping Info
Package Length
6.60000
Package Width
4.30000
Package Height
2.50000
Package Weight
2.7
