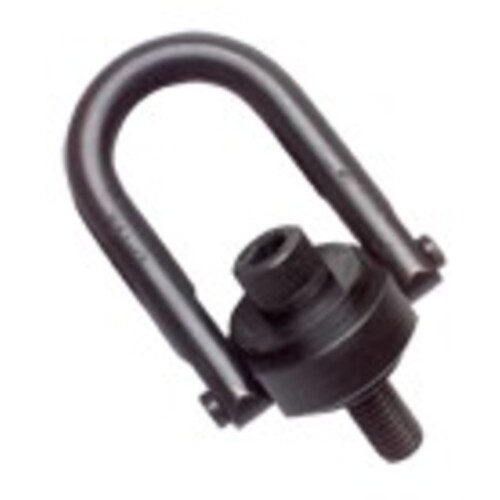

Hoist Ring - 5/16″-18; 0.54″ Thread Length; 800 lbs Rating Load; 2.67″ Overall Length
| Type | Hoist Ring | Overall Length | 2.67″ |
| Pivot Angle | 180° | Overall Width | 1.84″ |
| Swivel Angle | 360° | Thread Length | 0.54″ |
| Load Capacity | 800 lbs | Torque | 7 feet/lbs |
| Ball Diameter | 3/8″ | Weight | 5 oz |
| Thread Size | 5/16″-18 | External Radius | 1.61″ |
| Base Diameter | 1″ | Radius | 0.43″ |
| Base Height | 0.71″ |
Product Features
| Remarks | •Safety Engineered Hoist Rings•Industry Standard•These hoist rings are for heavy lifting and are designed to replace conventional lifting hardware and devices that have been outmoded by new safety regulations. •360° Swivel•180° Pivot•5:1 Safety Factor.•Precision machined lifting bail.•Accepted on many Government, Aerospace and Automotive specifications.•Heat treated alloy steel. Black oxide corrosion resistant finish. | Country of Origin | USA |
Shipping Info
Package Length
3.38580
Package Width
2.28350
Package Height
2.20470
Package Weight
