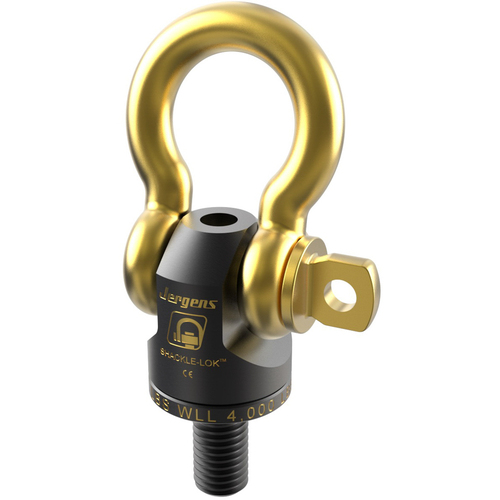

Hoist Ring, 13,500 kg Load Capacity, M48 × 5.0 Thread Size
| Type | Hoist Ring | Load Capacity | 13,500 kg |
| Pivot Angle | 180 Degrees | Thread Size | M48 × 5.0 |
| Swivel Angle | 360 Degrees |
Product Features
| Remarks | •Internal ball bearings (440 Stainless Steel) allow for smooth rotation under load. •Full 360° Swivel and 180° Pivot Action. •Easy to remove shackle. •Rated 5:1 Strength Factor in Vertical Pull. •Bolt & Base Material: Alloy Steel 4140; C40-44. •Bolt and Base Finish: Black Oxide. •Bolt and Base are Magnetic Particle Inspected. •Shackle & Shackle Pin: 1035 Carbon Steel; C18-24. •Shackle Finish: Zinc Plated with Gold Colored Conversion Coating. •Proof Tested to 200% of Rated Load Capacity. •Certificate of Proof Test provided. •3D Solid Models available in multiple formats from www.jergensinc.com | Country of Origin | USA |
Shipping Info
Package Weight
30.5700
