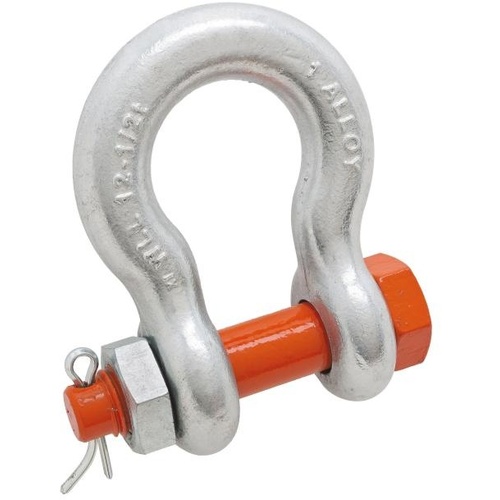

1 1/2″ Alloy Anchor Shackle, Bolt Type, Forged Alloy, Galvanized
| Type | Anchor Shackle | Finish | Galvanized |
| Pin Type | Bolt | Material | Forged Alloy Steel |
| Load Capacity | 30 tons |
Product Features
| Remarks | •Shackle Bodies Are Drop-Forged Alloy Steel •Galvanized to Meet ASTM A-153 Specifications •A-999-G Shackles Meet the Design Requirements of Federal Specification RR-C-271, Type IVA Grade B, Class 3 •Working Load Limit, Size, Manufacture Name, Date Code, "CE" Mark, and USA Permanently Marked on Each Shackle •Statistically Tested for Impact Resistance, Tensile Strength, Hardness, Ductility and Fatigue •999 Series Shackles Meet or Exceed All Manufacturing Requirements of the ASME B30.26 ″Rigging Hardware". These Include the Material Ductility Requirement (Section 26-1.1.2), the Design Factor Requirement (Section 26.1.2), the Identification Requirement (Section 26-1.5.1), and the Effective Temperature Range (Section 26-1.6.1). the Shackles Can Be Proof Tested in Accordance with Section 26-1.4 •Certification Available Upon Request •5 to 1 Design Factor •Pins and Bolts Are Heat-Treated and Made of Alloy Steel and Painted Orange •DO NOT EXCEED THE WORKING LOAD LIMIT | Country of Origin | USA |
Shipping Info
Package Weight
16
