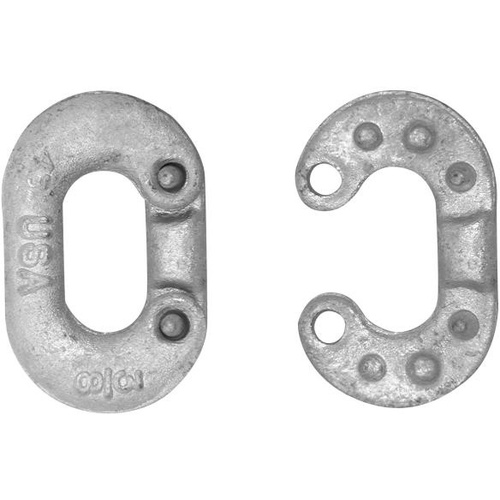

3/8″ Connecting Link, Forged Carbon Steel, Galvanized, 10 Pieces per Box
| Type | Link | Grade | C-752-S|C-752-G|A-752-S |
| Load Capacity | 2,800 lbs | Material | Carbon Steel |
| Chain Diameter | 3/8″ |
Product Features
| Remarks | •Drop-Forged Heat-Treated Carbon or Alloy Steel •Standard Finish is Self-Colored or Galvanized to Meet ASTM A-153 Specifications •4 to 1 Design Factor •For Proper Closure, Peen the Prongs to Fill the Hole of the Mating Half as Much as Possible •Meets Design Requirements of Federal Specification RR-C-271D, Type II •Make Sure the Connecting Link Used is the Same Size as the Components Being Joined. e.g., a 3/8 in. Connecting Link is Used with 3/8 in. Chain •Any Assembly Made Using Connecting Links Should be Rated at the Working Load Limit of the Weakest Component. •The Working Load Limit of Connecting Links is Based on a Straight Line Pull. Any Side or Shock Loading Will Significantly Reduce the Actual Working Load Limit. •NEVER Re-Use a Connecting Link •DO NOT EXCEED THE WORKING LOAD LIMIT | Country of Origin | UNITED STATES |
Shipping Info
Package Weight
0.175
