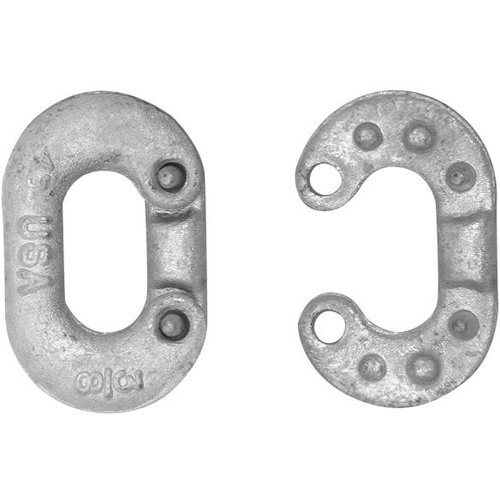

1/4″ Connecting Link, Forged Carbon Steel, Galvanized, 10 Pieces per Box

| Type | Link | Grade | C-752-S|C-752-G|A-752-S |
| Load Capacity | 1,400 lbs | Material | Carbon Steel |
| Chain Diameter | 1/4″ |
Product Features
| Remarks | •Drop-Forged Heat-Treated Carbon or Alloy Steel
•Standard Finish is Self-Colored or Galvanized to Meet ASTM A-153 Specifications
•4 to 1 Design Factor
•For Proper Closure, Peen the Prongs to Fill the Hole of the Mating Half as Much as Possible
•Meets Design Requirements of Federal Specification RR-C-271D, Type II
•Make Sure the Connecting Link Used is the Same Size as the Components Being Joined. e.g., a 3/8 in. Connecting Link is Used with 3/8 in. Chain
•Any Assembly Made Using Connecting Links Should be Rated at the Working Load Limit of the Weakest Component.
•The Working Load Limit of Connecting Links is Based on a Straight Line Pull. Any Side or Shock Loading Will Significantly Reduce the Actual Working Load Limit.
•NEVER Re-Use a Connecting Link
•DO NOT EXCEED THE WORKING LOAD LIMIT | Country of Origin | UNITED STATES |
Shipping Info
Package Weight
0.058
