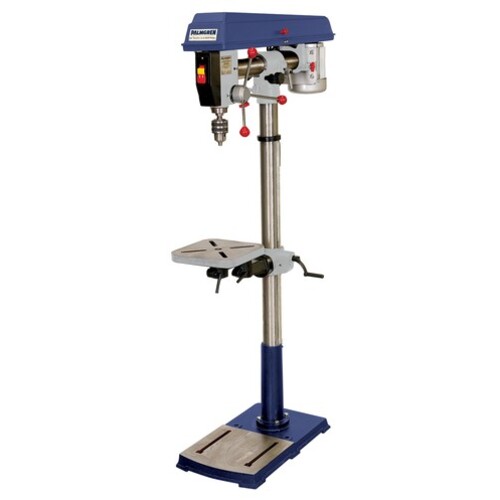

Floor Model Radial Drill Press; 5 Spindle Speeds; 1/2HP 115V Motor; 150lbs.
| Horsepower | 1/2 hp | Weight | 150 lbs |
| Quill Travel | 3 5/32″ | Spindle Taper | 2MT |
| Number of Spindle Speeds | 5 | Model No | 9680342 |
| Voltage | 115 V | Minimum Spindle Speed | 575 RPM |
| Table Length | 10 3/8″ | Maximum Spindle Speed | 3,250 RPM |
| Drilling Capacity in Cast Iron | 5/8″ |
Product Features
| Remarks | •An extended reach, tilting drill head is ideal for large or odd-shaped work pieces •Table tilts 45∞ left or right†and swivels 360∞ arount the column •Durable cast iron head, table & base •Spindle supported by high quality ball bearings •Rack and pinion table raiser •1/2″ through table & base slots for easy mounting and† clamlping of workpiece •Front mounted safety, paddle on/off switch •Drill chuck & key | Country of Origin | China |
Shipping Info
Hazard Code
W
Shipping Notes
Weighted Item. Additional Costs Apply.
Package Length
45.50000
Package Width
20.25000
Package Height
12.00000
Package Weight
150
