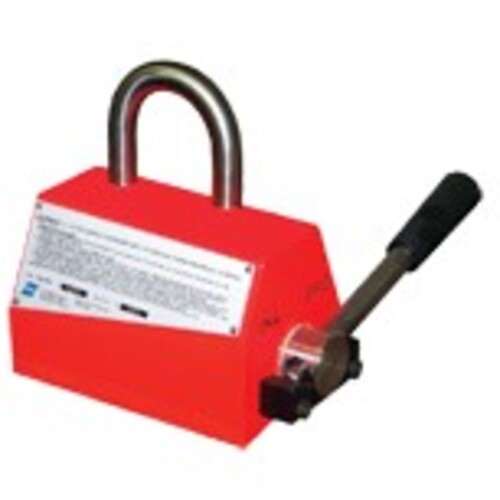

Material Lifting Magnets - 75/550 lbs Load Capacity
| Type | Material Lifting Magnet | Magnet Height | 4.53″ |
| Load Capacity | 550 lbs Sheet / 75 lbs Round | Model No | NEO250 |
| Magnet Length | 5.9 | Weight | 31 |
| Magnet Width | 4 |
Product Features
| Remarks | •For Vertical Loading into Machining Centers and Lathes •No product damage from rubbing and twisting of slings and grabs, or insertion and removal of lift hooks •Improve plant safety by avoiding costly accidents caused when people are on the floor rigging and slinging •Economical - you don t have the continual cost of repairing and replacing slings, chains and clamps •Model NEO-250 for loads with a thickness of 1/4″ or greater and diameters between 2–3/8″ and 7″ •Model NEO–500 for loads with a thickness of 1/4″ or greater and diameters between 2–3/4″ and 10″ •For loading of flat, ferrous metal workpieces onto any machining center with horizontal spindle type lathes •Also used to load machining centers, boring machines and other chip-making operations | Country of Origin | Czech Rep. |
Shipping Info
Shipping Notes
No restriction or additional charges for UPS Ground / No UPS Air shipments allowed
Package Weight
31.0000
