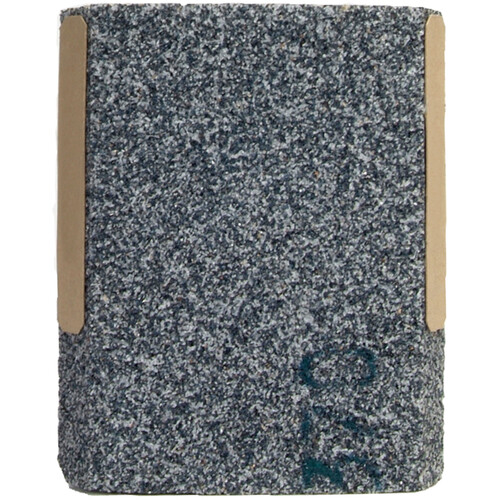

5X1-1/2 6 HIGH GEMINI 30E
| Trade Name | Gemini | Wheel Type | Type 31 |
| Width | 5″ | Specification | GEMINI 30-E |
| Height | 6″ | Bond Type | VBEPV |
| Thickness | 1-1/2″ | Type | Surface Grinding Segment |
| Grit | 30 | Standard Pack | 8 |
| Hardness | E | Special Feature | Hanchett, Mattason, Norton/ME20579 |
| Abrasive Material | Aluminum Oxide |
Product Features
| Remarks | •Specially blended aluminum oxide abrasive for many surface grinding applications.•The porous vitrified bond increases chip clearance and maximizes coolant flow, reduces loading and is cool cutting in heat-sensitive applications.•For use in Hanchett, Mattison, and Norton chucks on surface grinding machines.•Good choice when a broad variety of parts are ground on one machine.•Consistent performance at an economical initial price.•Surface grinding segments are generally used to grind flat stock or flat surfaces within a workpiece. The segment moves over the workpiece in a flat plane or vice versa. Applications can vary from heavy, rapid stock removal to precision tolerance operations. | Country of Origin | Mexico |
Shipping Info
Package Weight
2.65
