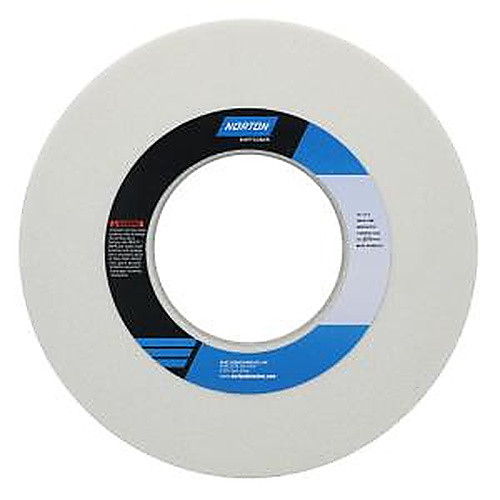

12″ × 1″ × 5″ 38A Surface/Cylindrical Wheel Type 01 Straight 46 Grit Aluminum Oxide
Surface Grinding Wheel ; Type 01 ; 12″ Dia. × 1″ W ; 5″ Arbor ; 46 Grit ; I Hardness ; Aluminum Oxide ; Vitrified ; Coarse ; 2,070 Max. RPM ; 1″ Thickness
| Diameter | 12″ | Specification | 38A46-IVBE |
| Width | 1″ | Color | White |
| Arbor Hole | 5″ | Recess Type | No Recess |
| Grit | 46 | Thickness | 1″ |
| Hardness | I | For Use With | CNC Cutting Tool Machine|Surface Grinder|Cylindrical Grinder |
| Abrasive Material | Aluminum Oxide | Porosity | Non-Porous |
| Wheel Type | Type 01 | Tapered | No |
| Bond Type | Vitrified | Material Application | Super Alloys|Tool Steels|Soft Carbon Steels |
| Grade | Coarse | Hardness Rating | Medium |
| Maximum RPM | 2,070 |
Product Features
| Remarks | •The most friable aluminum oxide abrasive for cool and burn free cutting toolroom applications with light to moderate feed rates •The most versatile vitrified bond, especially recommended for toolroom, cylindrical, and surface grinding hard and very heat sensitive high speed tool steels; cool fast cutting •Consistent quality for excellent balance and dimensional accuracy time after time •Versatile; good choice for light grinding a broad variety of tool steels •Made in USA in ISO certified facility •Used on surface, cylindrical, and tool and cutter grinders, Norton precision, form-holding vitrified toolroom wheels maximize your productivity. Available in latest-generation ceramic alumina, aluminum oxide, and silicon carbide for every ferrous and nonferrous MRO, small job shop, and production operation. | Country of Origin | Mexico |
Shipping Info
Package Weight
7.4
