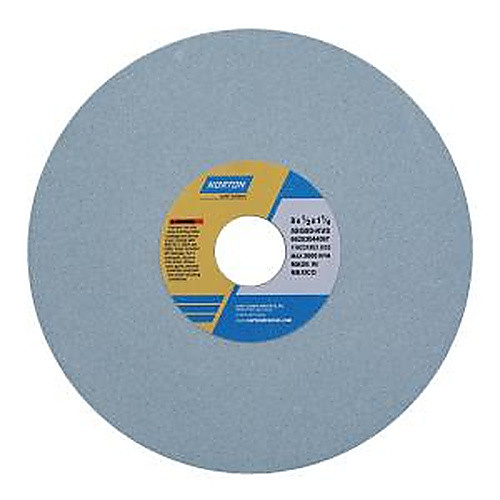

8X1/2X1-1/4 5SG-80K T1
Surface Grinding Wheel ; Type 01 ; 8″ Dia. × 1/2″ W ; 1-1/4″ Arbor ; 80 Grit ; K Hardness ; Ceramic Alumina ; Vitrified ; Fine ; 3600 Max. RPM ; 1/2″ Thickness
| Diameter | 8″ | Specification | 5SG80-KVS |
| Width | 1/2″ | Color | Blue |
| Arbor Hole | 1-1/4″ | Recess Type | No Recess |
| Grit | 80 | Thickness | 1/2″ |
| Hardness | K | Standard Pack | 1 |
| Abrasive Material | Ceramic Alumina | For Use With | CNC Cutting Tool Machine|Surface Grinder|Cylindrical Grinder |
| Wheel Type | Type 01 | Porosity | Porous |
| Bond Type | Vitrified | Tapered | No |
| Grade | Medium | Material Application | Super Alloys|Ductile Iron|Hard Carbon Steels|Cast Iron|Titanium|Gray Iron|400 Series Stainless|Tool Steels |
| Maximum RPM | 3,600 | Hardness Rating | Medium |
Product Features
| Remarks | •Exceptionally high-performance ceramic alumina and friable aluminum oxide abrasive blend for fast stock removal, cool, superior cutting; 3X-5X more life than aluminum oxide wheels; double rough stock removal rate vs. conventional abrasives •High performance bond for versatility (for grinding high sped tool steels, hardened and soft steels, and aerospace alloys) and exceptional form holding •Self-sharpening abrasive minimizes burn and dressing, to maximize sharp edge on tools and dies for longer life in production •Best choice for high productivity, low total per-part grinding cost •Made in USA in ISO certified facility •5SG ? Durable Norton SG and aluminum oxide blend ? blue for high stock removal rates, excellent productivity, long wheel life, low overall grinding cost •NORPOR 3SGR purple Norton SG and 48A abrasive blend with VP2 porous bond for maximum productivity in heat-sensitive, heavy stock removal operations •Used on surface, cylindrical, and tool and cutter grinders, Norton precision form holding vitrified toolroom wheels maximize your productivity. Available in latest generation ceramic alumina, aluminum oxide, and silicon carbide for every ferrous and nonferrous MRO, small job shop, and production operation. | Country of Origin | Mexico |
Shipping Info
Package Length
8.00000
Package Width
8.00000
Package Height
.50000
Package Weight
1.85
