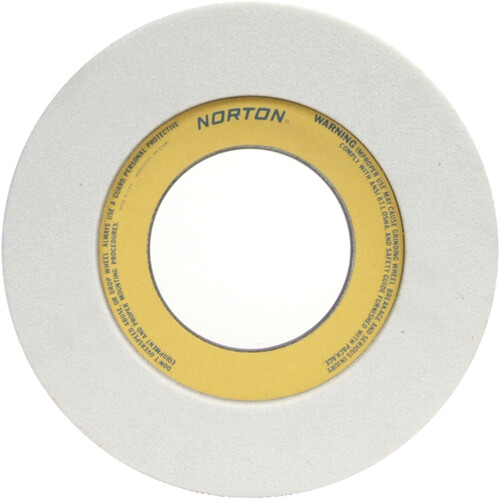

12″ × 2″ × 5″ 38A Toolroom Wheel Type 07 Recessed Two Sides 46 Grit Aluminum Oxide
Surface Grinding Wheel ; Type 07 ; 12″ Dia. × 2″ W ; 5″ Arbor ; 46 Grit ; I Hardness ; Aluminum Oxide ; Vitrified ; Coarse ; 2,070 Max. RPM ; 2″ Thickness
| Diameter | 12″ | Color | White |
| Width | 2″ | Recess Type | Two Side |
| Arbor Hole | 5″ | Recess Depth | 1/2″ |
| Grit | 46 | Recess Diameter | 7-1/2″ |
| Hardness | I | Thickness | 2″ |
| Abrasive Material | Aluminum Oxide | For Use With | Surface Grinder|Cylindrical Grinder |
| Wheel Type | Type 07 | Porosity | Non-Porous |
| Bond Type | Vitrified | Tapered | No |
| Grade | Coarse | Material Application | Super Alloys|Tool Steels|Soft Carbon Steels |
| Maximum RPM | 2,070 | Hardness Rating | Medium |
| Specification | 38A46-IVBE |
Product Features
| Remarks | •The most friable aluminum oxide abrasive for cool and burn free cutting toolroom applications with light to moderate feed rates •The most versatile vitrified bond, especially recommended for toolroom, cylindrical, and surface grinding hard and very heat sensitive high speed tool steels; cool fast cutting •Consistent quality for excellent balance and dimensional accuracy time after time •Versatile; good choice for light grinding a broad variety of tool steels •Made in USA in ISO certified facility •Used on surface, cylindrical, and tool and cutter grinders, Norton precision form holding vitrified toolroom wheels maximize your productivity. Available in latest generation ceramic alumina, aluminum oxide, and silicon carbide for every ferrous and nonferrous MRO, small job shop, and production operation. | Country of Origin | USA |
Shipping Info
Package Weight
12.75
