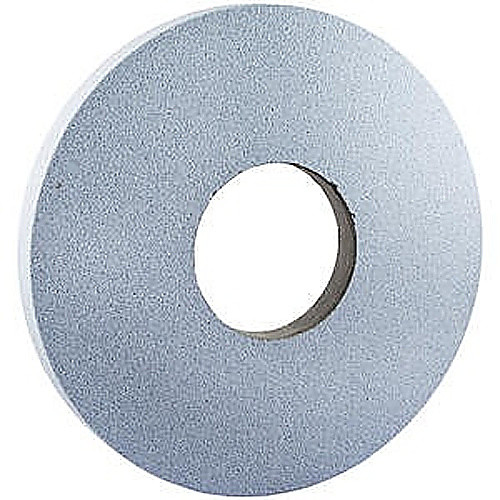

14″ × 1″ × 5″ Norton SG Surface/Cylindrical Wheel Type 01 Straight 60 Grit Ceramic Alumina
Surface Grinding Wheel ; Type 01 ; 14″ Dia. × 1″ W ; 5″ Arbor ; 60 Grit ; I Hardness ; Ceramic Alumina ; Vitrified ; Medium ; 1,800 Max. RPM ; 1″ Thickness
| Diameter | 14″ | Specification | 5SG60-IVSP |
| Width | 1″ | Color | Blue |
| Arbor Hole | 5″ | Recess Type | No Recess |
| Grit | 60 | Thickness | 1″ |
| Hardness | I | For Use With | CNC Cutting Tool Machine|Surface Grinder|Cylindrical Grinder |
| Abrasive Material | Ceramic Alumina | Porosity | Porous |
| Wheel Type | Type 01 | Tapered | No |
| Bond Type | Vitrified | Material Application | Super Alloys|Ductile Iron|Hard Carbon Steels|Cast Iron|Titanium|Gray Iron|400 Series Stainless|Tool Steels |
| Grade | Medium | Hardness Rating | Medium |
| Maximum RPM | 1,800 |
Product Features
| Remarks | •Exceptionally high-performing seeded gel ceramic alumina and friable aluminum oxide abrasive blend for fast stock removal, cool, superior cutting; 3X-5X more life than aluminum oxide wheels; 2X stock removal rate vs. conventional abrasives •Proven porous vitrified bond, especially recommended for toolroom and surface grinding on medium to wide areas of contact and heat sensitive materials •Self-sharpening abrasive minimizes burn and dressing, to maximize sharp edge on tools and dies for longer life in production •Best choice for high productivity, low total per-part grinding cost •Made in USA in ISO certified facility •5SG ? Durable Norton SG and aluminum oxide blend ? blue for high stock removal rates, excellent productivity, long wheel life, low overall grinding cost •NORPOR 3SGR ? Purple Norton SG and 48A abrasive blend with VP2 porous bond for maximum productivity in heat-sensitive, heavy stock removal operations •Used on surface, cylindrical, and tool and cutter grinders, Norton precision, form-holding vitrified toolroom wheels maximize your productivity. Available in latest-generation ceramic alumina, aluminum oxide, and silicon carbide for every ferrous and nonferrous MRO, small job shop, and production operation. | Country of Origin | USA |
Shipping Info
Package Weight
9.3
