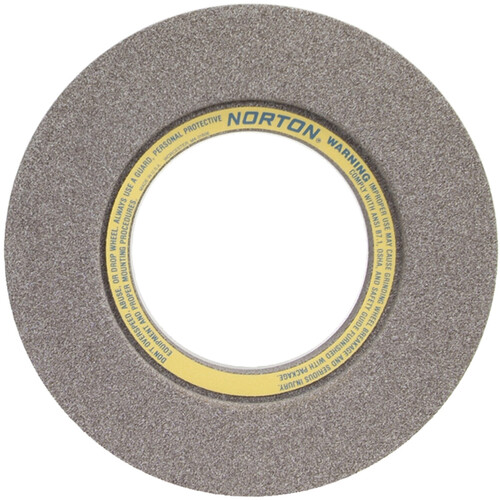

20″ × 3″ × 10″ Gemini Cylindrical Wheel Type 07 Recessed Two Sides 46 Grit Aluminum Oxide
| Diameter | 20″ | Color | Gray; Blue |
| Width | 3″ | Recess Type | Two Side |
| Arbor Hole | 10″ | Recess Depth | 3/4″ |
| Grit | 46 | Recess Diameter | 12-1/4″ |
| Hardness | I | Thickness | 3″ |
| Abrasive Material | Aluminum Oxide | For Use With | Surface Grinder|Cylindrical Grinder |
| Wheel Type | Type 07 | Porosity | Porous |
| Bond Type | Vitrified | Tapered | No |
| Grade | Coarse | Material Application | Ductile Iron|Aluminum|Hard Carbon Steels|Cast Iron|Gray Iron|400 Series Stainless|Tool Steels|Soft Carbon Steels |
| Maximum RPM | 1,450 | Hardness Rating | Medium |
| Specification | GEMINI 46-I |
Product Features
| Remarks | •Specially blended aluminum oxide abrasive for many surface grinding applications, good choice when a broad range of parts are ground on one machine •Porous bond for cool cutting on medium to wide contact areas •High chip clearance and stock removal •Faster grinding rates remove stock; lower rates produce finer finishes •Consistent performance at an economical price •Large surface grinding wheels are generally used to grind flat stock or flat surfaces within a workpiece. These wheels are typically used on horizontal spindle machines. Applications can vary from heavy, rapid stock removal to precision tolerance operations. | Country of Origin | USA |
Shipping Info
Hazard Code
W
Shipping Notes
Weighted Item. Additional Costs Apply.
Package Weight
53.75
