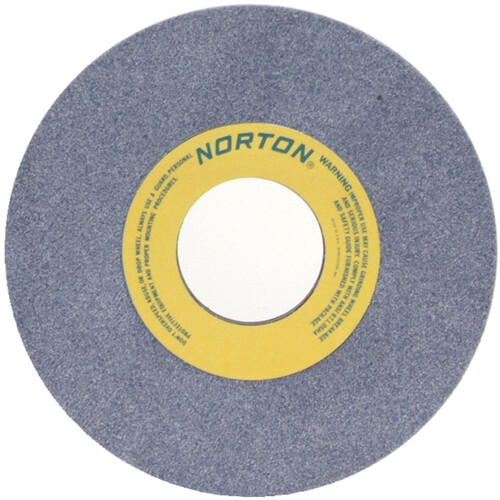

10″ × 1″ × 3″ 32AA Surface/Cylindrical Wheel Type 01 Straight 46 Grit Aluminum Oxide
Surface Grinding Wheel ; Type 01 ; 10″ Dia. × 1″ W ; 3″ Arbor ; 46 Grit ; I Hardness ; Aluminum Oxide ; Vitrified ; Medium ; 2,485 Max. RPM ; 1″ Thickness
| Diameter | 10″ | Specification | 32AA46-IVTR |
| Width | 1″ | Color | Gray |
| Arbor Hole | 3″ | Recess Type | No Recess |
| Grit | 46 | Thickness | 1″ |
| Hardness | I | For Use With | CNC Cutting Tool Machine|Surface Grinder|Cylindrical Grinder |
| Abrasive Material | Aluminum Oxide | Porosity | Porous |
| Wheel Type | Type 01 | Tapered | No |
| Bond Type | Vitrified | Material Application | Hard Carbon Steels|Tool Steels|Soft Carbon Steels |
| Grade | Coarse | Hardness Rating | Medium |
| Maximum RPM | 2,485 |
Product Features
| Remarks | •Advanced proprietary abrasive grain for 2X more life than standard AO grains, increased productivity, draws less power, free cutting, less burn •VTR bond system is designed for better part tolerance and form holding on toolroom, cylindrical, and surface grinding applications •Increased efficiency when grinding a wide range of materials from high sped tool steels to soft steels and aerospace alloys on narrow and medium areas of contact •Work well at moderate to heavy feed rates •Made in USA in ISO certified facility •Used on surface, cylindrical, and tool and cutter grinders, Norton precision, form-holding vitrified toolroom wheels maximize your productivity. Available in latest-generation ceramic alumina, aluminum oxide, and silicon carbide for every ferrous and nonferrous MRO, small job shop, and production operation. | Country of Origin | Mexico |
Shipping Info
Package Weight
5.55
