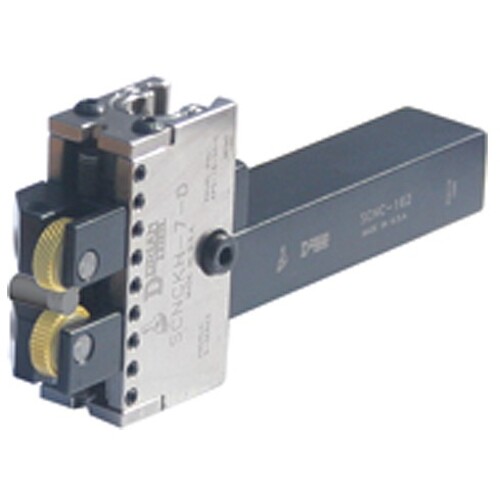

Knurl Tool - 3/4 × 3/4″ SH - No. CNC-75-7-R
| Style | SSCK - Shoulder Self Centering | Tool Type | Straddle Forming |
| Shank Size (SS) | 3/4″ | Model Number | CNC-75-7-R |
| Includes | Set of Beveled diagonal high speed TiN coated knurl wheels, 30 TPI*, 25 TPI** | Series/List # | 20910 |
| Master Insert Identification (MIID) | Knurl Wheel R | PackSize | 1 |
| Knurl Wheel Size | R | Remarks | •No. 7 -- Straddle Forming •Knurl forming action- better quality of knurl pattern. •Compact design allows more clearance for the tool head. •Twin R series knurl wheels for straight or diamond pattern- supplies more rigidity for compact design. •Supplied with RDR/L–30-C Tin-c coated cobalt knurl wheel- adds longer life and better performance to the knurl wheel. •Self-centering knurling head •Applications: Small diameter range up to 1″ (best for small diameter, long parts, and special applications) -- Diamond/straight patterns -- In feed and end feed -- Feed range .004 to .012 |
| Knurl Pin Set Number | GG35KPS2562C |
Product Features
| Remarks | •No. 7 -- Straddle Forming •Knurl forming action- better quality of knurl pattern. •Compact design allows more clearance for the tool head. •Twin R series knurl wheels for straight or diamond pattern- supplies more rigidity for compact design. •Supplied with RDR/L–30-C Tin-c coated cobalt knurl wheel- adds longer life and better performance to the knurl wheel. •Self-centering knurling head •Applications: Small diameter range up to 1″ (best for small diameter, long parts, and special applications) -- Diamond/straight patterns -- In feed and end feed -- Feed range .004 to .012 | Country of Origin | USA |
Shipping Info
Package Weight
2.92
