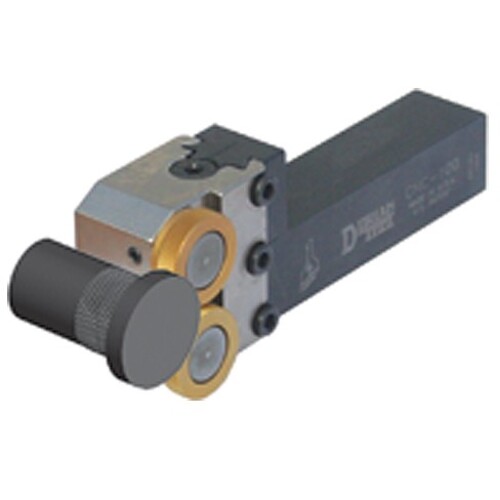

Knurl Tool - 3/4 × 3/4″ SH - No. CNC-75-6-4
| Style | Shoulder Forming - Diameter Range Greater than 5/16″ | Tool Type | Shoulder Forming |
| Shank Size (SS) | 3/4″ | Model Number | CNC-75-6-4 |
| Includes | Set of Beveled diagonal high speed beveled TiN coated knurl wheels, 25 TPI for a male diamond pattern | Series/List # | 20780 |
| Master Insert Identification (MIID) | Knurl Wheel SW4 | PackSize | 1 |
| Knurl Wheel Size | SW4 | Remarks | •No. 6 -- Shoulder Forming •Knurl forming action -- better quality of knurl pattern •Twin SW series knurl wheels for straight or diamond pattern- allows tool to knurl against a square shoulder. •Thrust washer mounts between the knurls and tool head- ensures smooth and even rotation •Supplied with SW3.5R/L–25C Tin-c coated cobalt knurl wheels- adds longer life and better performance to the knurl wheels •Applications: Shoulder diameter range 5/16″ and up (best for knurling against a shoulder) -- Diamond/Straight pattern -- Shoulder knurling -- In feed and end feed -- Feed range .004 to .012 |
| Knurl Pin Set Number | GG35SW4OP2S |
Product Features
| Remarks | •No. 6 -- Shoulder Forming •Knurl forming action -- better quality of knurl pattern •Twin SW series knurl wheels for straight or diamond pattern- allows tool to knurl against a square shoulder. •Thrust washer mounts between the knurls and tool head- ensures smooth and even rotation •Supplied with SW3.5R/L–25C Tin-c coated cobalt knurl wheels- adds longer life and better performance to the knurl wheels •Applications: Shoulder diameter range 5/16″ and up (best for knurling against a shoulder) -- Diamond/Straight pattern -- Shoulder knurling -- In feed and end feed -- Feed range .004 to .012 | Country of Origin | USA |
Shipping Info
Package Weight
2.65
