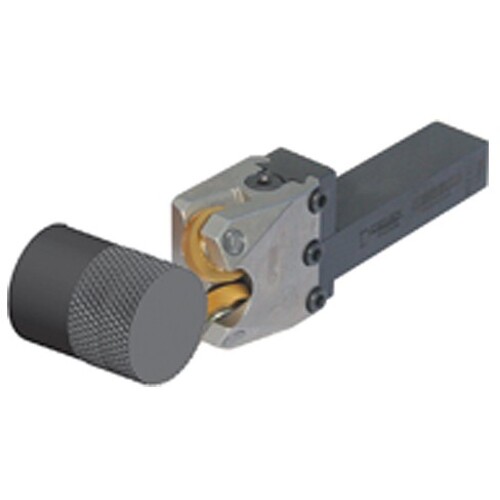

Knurl Tool - 3/4 × 3/4″ SH - No. CNC-75-3-M
| Style | Extra Heavy Duty 60° Diamond Cutting - Diameter Range Greater than 2″ | Tool Type | Extra HD Diamond Cutting |
| Shank Size (SS) | 3/4″ | Model Number | CNC-75-3-M |
| Includes | Set of Full Face straight high speed TiN coated knurl wheels, 25 TPI for a male diamond pattern | Series/List # | 20610 |
| Master Insert Identification (MIID) | Knurl Wheel MS | PackSize | 1 |
| Knurl Wheel Size | MS | Remarks | •No. 3 -- Extra Heavy Duty Diamond Cutting •Knurl cutting action with minimum stress on the machine. •Uses twin straight M series knurl wheels for diamond pattern- supplies more rigidity for larger diameters. •Knurl wheels mounted between thrust washers- ensures smooth and even rotation. •Supplied with MS–25-C Tin-c coated cobalt knurl wheels- adds longer life and better performance to the knurl wheels. •Applications: Extra heavy duty cutting range 2.0″ and up (best for over 2–1/2″) -- Large diameter -- Diamond pattern -- End feed -- Feed range .004 to .025 |
| Knurl Pin Set Number | GG35KPS31100C |
Product Features
| Remarks | •No. 3 -- Extra Heavy Duty Diamond Cutting •Knurl cutting action with minimum stress on the machine. •Uses twin straight M series knurl wheels for diamond pattern- supplies more rigidity for larger diameters. •Knurl wheels mounted between thrust washers- ensures smooth and even rotation. •Supplied with MS–25-C Tin-c coated cobalt knurl wheels- adds longer life and better performance to the knurl wheels. •Applications: Extra heavy duty cutting range 2.0″ and up (best for over 2–1/2″) -- Large diameter -- Diamond pattern -- End feed -- Feed range .004 to .025 | Country of Origin | USA |
Shipping Info
Package Weight
2.7
