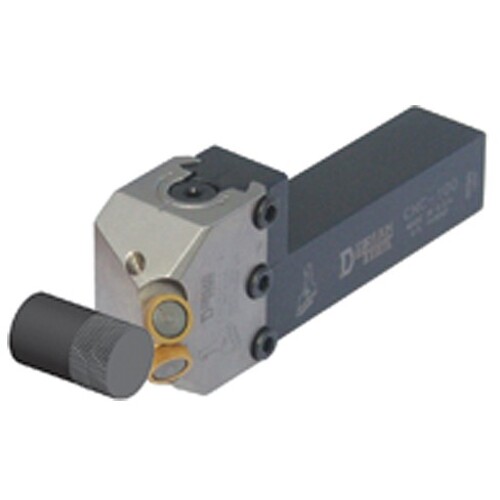

Knurl Tool - 3/4 × 3/4″ SH - No. CNC-75-1-2
| Style | Light Duty 60° Diamond Cutting - Diameter Range 1/2″ to 1-1/2″ | Tool Type | Small Diamond Cutting |
| Shank Size (SS) | 3/4″ | Model Number | CNC-75-1-2 |
| Includes | Set of Full Faced straight high speed TiN coated knurl wheels, 30 TPI for a male diamond pattern | Series/List # | 20410 |
| Master Insert Identification (MIID) | Knurl Wheel SW2S | PackSize | 1 |
| Knurl Wheel Size | SW2S | Remarks | •No. 1 -- Small Diameter Diamond Cutting •Knurl cutting action with minimum stress on the machine. •Uses twin straight SW series knurl wheels for diamond pattern- allows tool to knurl close to a square shoulder. •Supplied with SW2S–30C Tin-c coated cobalt knurl wheels- adds longer life and better performance to the knurl wheels. •Applications: Small cutting range 5/16″ to 1–1/2″ (best for up to 1″) -- Small diameter -- Diamond pattern -- End feed -- Feed range .004 to .012 |
| Knurl Pin Set Number | GG35PSW20S |
Product Features
| Remarks | •No. 1 -- Small Diameter Diamond Cutting •Knurl cutting action with minimum stress on the machine. •Uses twin straight SW series knurl wheels for diamond pattern- allows tool to knurl close to a square shoulder. •Supplied with SW2S–30C Tin-c coated cobalt knurl wheels- adds longer life and better performance to the knurl wheels. •Applications: Small cutting range 5/16″ to 1–1/2″ (best for up to 1″) -- Small diameter -- Diamond pattern -- End feed -- Feed range .004 to .012 | Country of Origin | USA |
Shipping Info
Package Weight
2.5
