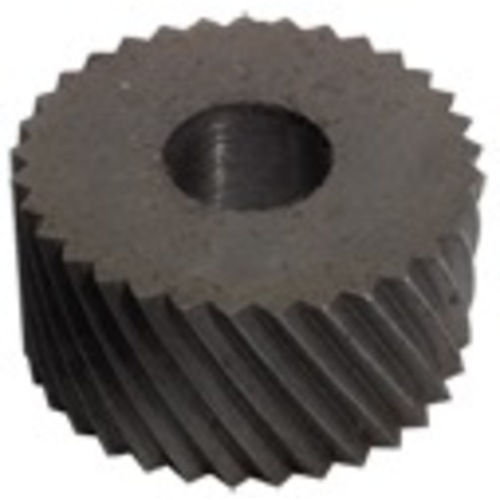

Knurling Wheel - 1/4″ Hole Dia., 5/8″ Knurl Dia., 1/4″ Width (20 TPI) - Series GK
| Arbore-Hole Diameter | 1/4″ | Threads per Inch (TPI) | 20 |
| Outer Diameter | 5/8″ | Angle | 90 Degrees |
| Material | HSS | Tool Type | Knurling Wheel GK |
| Pitch | Circular | PackSize | 1 |
| Style | Straight | Remarks | •Circular Pitch Knurls 30° Spiral Knurls •GK Series Circular Pitch Knurls •The circular Pitch Knurl System is the older system and has been in use many years. The spacing of the teeth is measured by the number of teeth per inch (TPI) around the circumference. Knurling can be done with many types of holders made for knurling or with any holder (or machine) made for thread rolling. |
| Thickness (H) | 1/4″ |
Product Features
| Remarks | •Circular Pitch Knurls 30° Spiral Knurls •GK Series Circular Pitch Knurls •The circular Pitch Knurl System is the older system and has been in use many years. The spacing of the teeth is measured by the number of teeth per inch (TPI) around the circumference. Knurling can be done with many types of holders made for knurling or with any holder (or machine) made for thread rolling. | Country of Origin | USA |
Shipping Info
Package Length
.62700
Package Width
.62700
Package Height
.24800
Package Weight
0.025
