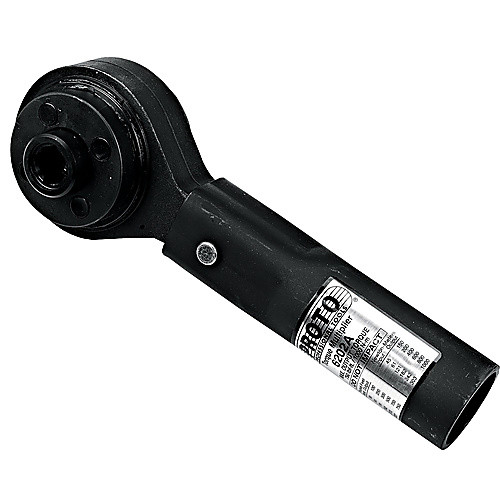

Proto Torque Multiplier 750 ft-lbs
| Type | Torque Multiplier | Maximum Output | 750 feet/lbs |
| Drive Size | 3/4″ | Head Depth | 4″ |
| Overall Length | 8 19/32″ | Head Length | 2 13/16″ |
| Torque Range Ft-Lbs | 750 feet/lbs | Handle Length | 5 1/4″ |
| Accuracy | 5% | Torque Range In-Lb | 120-1200 |
| System of Measurement | Imperial | Torque Nm | 12.6-135.6 |
| Included | Blow molded box | Input Drive | 1/2″ |
| Head Diameter | 3 3/32″ | Output Drive | 3/4″ |
| Head Height | 2 13/16″ | Model No | J6202A |
| Torque Ratio | 01:03.3 |
Product Features
| Remarks | • Maximum rated input: 227 ft-lbs (308 Nm). • Maximum rated output: 750 ft-lbs (1017 Nm). • Standard torque accuracy is +/- 5% of reading. • Reaction system: tubular reaction bar. • Gear system: single stage planetary. | Country of Origin | USA |
Shipping Info
Package Length
11.00000
Package Width
6.00000
Package Height
3.80000
Package Weight
4.77
