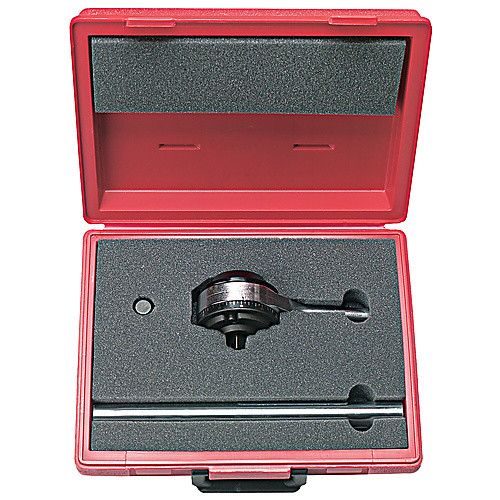

Proto Torque Multiplier 1200 ft-lbs
| Type | Torque Multiplier | Torque Ratio | 1:06 |
| Drive Size | 3/4″ | Maximum Output | 750 feet/lbs |
| Overall Length | 19 19/32″ | Head Depth | 4″ |
| Torque Range Ft-Lbs | 1,200 feet/lbs | Head Length | 3 5/16″ |
| Accuracy | 5% | Handle Length | 14 1/8″ |
| System of Measurement | Imperial | Input Drive | 1/2″ |
| Included | Blow molded box | Output Drive | 3/4″ |
| Head Diameter | 4″ | Model No | J6212 |
| Head Height | 3 15/16″ |
Product Features
| Remarks | • Maximum rated input: 200 ft-lbs (271 Nm). • Maximum rated output: 1200 ft-lbs (1626 Nm). • Standard torque accuracy is +/- 5% of reading. • Reaction system: tubular reaction bar. • Gear system: single stage planetary. • Angle of turn protractor: 5° increments. | Country of Origin | USA |
Shipping Info
Package Length
16.10000
Package Width
12.80000
Package Height
5.20000
Package Weight
13.36
