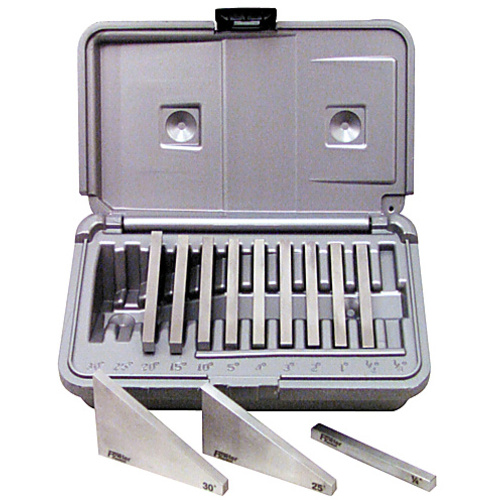

Model 52–666–777–12 Pieces–1/4° to 30° Angle - Angle Block Set
| Type | Angle Block Set | Angles Included | 1/4° to 30° |
| Accuracy | ±0.0001″ | Number of Pieces | 12 |
| Length | 3″ | Set Includes | 1/4°, 1/2°, 1°, 2°, 3°, 4°, 5°, 10°, 15°, 20°, 25°, 30°. Shop hardened molded case |
| Thickness | 1/4″ | Applications | Production and Inspection |
| Material | Hardened Steel | Model No | 52-666-777 |
Product Features
| Remarks | •Ultra Precision 12 Piece Angle Block Set •Ideal for Production and Inspection Applications •Made from hardened steel, precision ground •Angular accuracy .0001? per inch 30 arc seconds •3? long 1/4? thick •Simple, quick angle set-ups •Includes a shop hardened molded case •Avoid errors by eliminating calculations •Complete Set of 12 Blocks: 1/4°, 1/2°, 1°, 2°, 3°, 4°, 5°, 10°, 15°, 20°, 25°, 30° | Country of Origin | Taiwan |
Shipping Info
Package Length
8.10000
Package Width
5.10000
Package Height
2.30000
Package Weight
1.88
