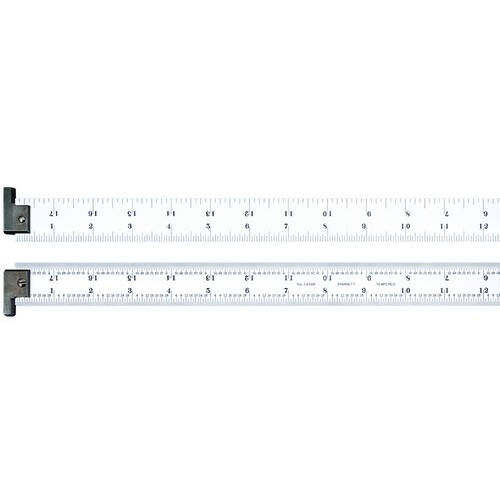

CH604R-18 HOOK RULE
| Type | Single Hook Scale | Width | 1.125″ |
| Length | 18″ | Finish | Satin Chrome |
| Graduation | 1/32″, 1/64″, 1/10″, 1/50″ | Model No | CH604R-18 |
| Material | Steel | Thickness | 3/64″ |
| Graduation Type | 4R |
Product Features
| Remarks | •Steel Rules •4 Styles available Full-Flex (1/64th thick) Semi-Flex (1/50th thick) Spring-Tempered (3/64th thick) •2 Hook styles available- adjustable hook and adjustable double hook •Staggered graduation •All rules are machine divided and tempered for accuracy and long wear •Rule Graduation 3R: 1/32, 1/64, 1/10 and 1/50ths, 4R: 1/8, 1/16, 1/32, and 1/64ths, 5R: 1/32, 1/64, 1/10, and 1/100ths, 16R: 1/32, 1/64, 1/50 and 1/100ths, 30: 1/2mm one side, mm 1/2mm other, 31: 32″, 64ths, 1/2mm, 34: mm, 1/2mm. 10ths. 50ths, 35/37: mm, 1/2mm both sides (E-mm End) 36: 32nds, 1/2mm, 64ths, mm | Country of Origin | USA |
Shipping Info
Package Length
18.50000
Package Width
1.75000
Package Height
.31000
Package Weight
0.3
