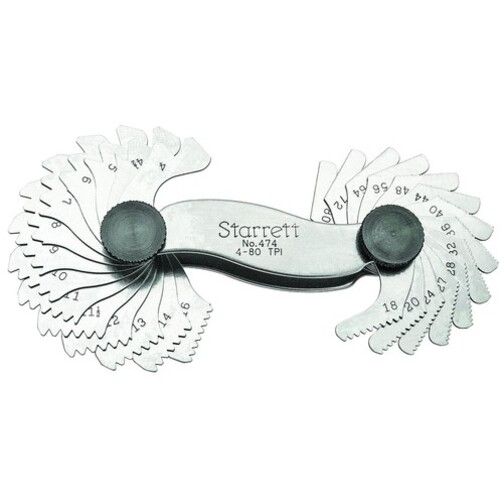

Model 474–28 Leaves–4 to 80 Pitch - Screw Pitch Gage
| Type | Screw Pitch Gage | Model No | 474 |
| Pitch Range | 4″-80″ | System of Measurement | Imperial |
| Number of Leaves | 28 | Number of Groups | Thread Gaging |
Product Features
| Remarks | •Available in a wide range of sizes with different numbers of leaves in various pitch ranges for gaging V, Unified, American National and U.S. Standard 60° threads and Whitworth Standard 55° threads •All have a locking device at both ends of case for locking any leaf of leaves in desired position •Leaves on all gages have special narrow design for easy checking of internal threads in nuts, etc. and flatted teeth for checking both V and American National or U.S. Standard threads •Each leaf stamped with number of threads per inch. | Country of Origin | USA |
Shipping Info
Package Length
3.50000
Package Width
1.20000
Package Height
1.10000
Package Weight
0.122
