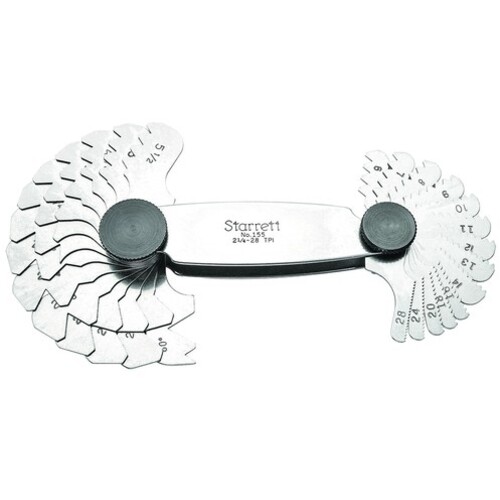

155 SCREW PITCH GAGE
| Type | Screw Pitch Gage | Material | Stainless Steel |
| Pitch Range | 2 1/4″-28″ | Model No | 155 |
| Number of Leaves | 27 | System of Measurement | Imperial |
| Thread Angle | 29° | Number of Groups | Thread Gaging |
Product Features
| Remarks | •Features #52–470 Series Pressure angle 14.5° Involute Gear Tooth Gages easily determine pitch diameter of involute gears from 6–80 and 2–5 in inch and 0.5–5 and 6–12 in metric •Features #52–485–015, 020, & 051 Narrow designed blades permit use for internal and external screw threads •Locking device at each end to secure all blades for storage orposition •Correct pitch is determined by matching blade teeth with threads •Precisely ground and finished Blades marked with thread size •Features #52–485–030 Acme Screw Pitch Gages (29° angle) made of fine stainless steel. Each blade is 3 /90 mm long and .03 /.8 mm thick. | Country of Origin | USA |
Shipping Info
Package Length
4.00000
Package Width
1.00000
Package Height
1.00000
Package Weight
0.267
