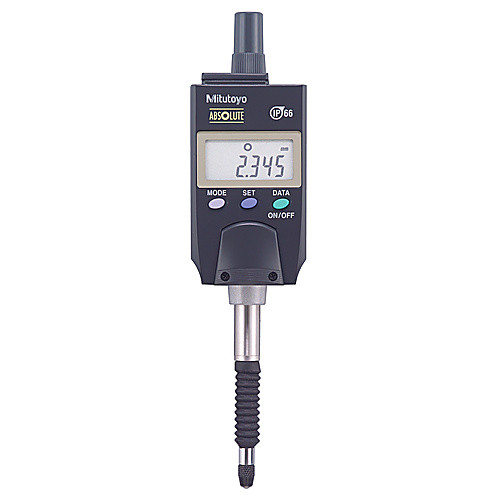

Electronic Indicator - 0.0-0.5 / 0.0-12.7 mm Total Range-0.0005/0.01 mm or 0.00005/0.001 mm Resolution - With Absolute Encoder
| Type | Electronic Indicator | Features | With Absolute Encoder |
| Indicator Style | ID-N | Model No | 543-576 |
| Total Range | 0 - .5″ / 0 - 12.7mm | Resolution | 0.0005″ / 0.01 mm or 0.00005″ / 0.001 mm |
| Contact Point Diameter | .375″ | Accuracy | 0.00012″/0.003 mm |
Product Features
| Remarks | •ID-N & ID-B Digimatic Indicators •Absolute encoder ensures all settings and readings maintained for the life of the battery (even when the power is turned off) •IP-66 Level of protection •Small 1.38″ (35mm) width is an ideal advantage for mulitple gauge applications •Multi direction measurements are possible by the reversible LCD display •Measurement fixtures for various applications can be constructed with the combination of ID-N and ID-B indicators •For SPC, order cable 21EAA194 40″ (1m) or 21EAA190 80″ (2m) | Country of Origin | Japan |
