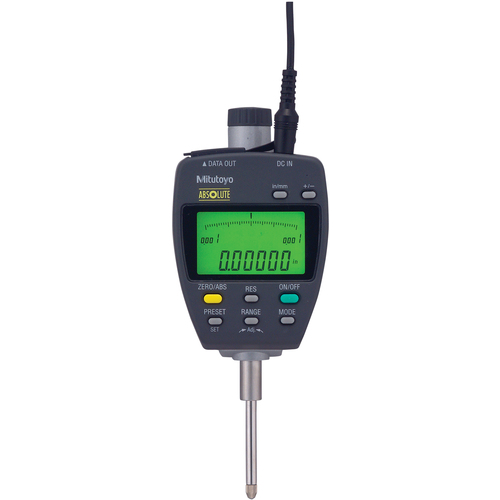

Electronic Indicator - 0.0-1.0 / 0.0-25 mm Total Range-0.001, 0.0005, 0.0001, 0.00005/0.01 mm, 0.001 mm Resolution - With Absolute Encoder
| Type | Electronic Indicator | Features | With Absolute Encoder |
| Indicator Style | IDF | Model No | 543-552A |
| Total Range | 0 - 1″ / 0 - 25.4mm | Resolution | 0.001″, 0.0005″, 0.0001″, 0.00005″ / 0.01 mm, 0.001 mm |
| Contact Point Diameter | .375″ | Accuracy | 0.00012″ |
Product Features
| Remarks | •Digimatic Indicator IDF •Visual tolerance judgement •Peak hold •Maximum/minimum value •Presetting; allows a reference point to be set at any spindle position •Retains the setup conditions •Count direction switching •Analog display range switching •Inch/mm conversion •External power supply •Absolute encoder technology •SPC output cables | Country of Origin | USA |
Shipping Info
Package Weight
1.4
