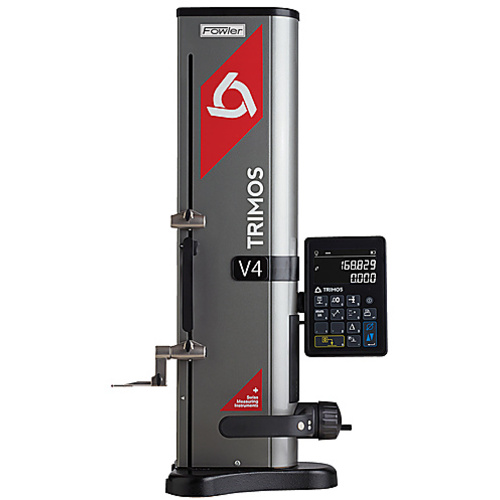

| Type | V4 Electronic Height Gage | Includes | Charging unit, measuring insert with ruby ball diameter 4 mm, probe holder elbow diameter 8 mm, setting gage, user's manual, test certificate |
| Total Range | 28.3″ / 719 mm | Model No | 54-191-440-0 |
| Resolution | 0.00005″ / 0.001 mm | Air Cushion | Yes |
| Accuracy | .0002″/.005mm | Maximum Measurement | 16″ / 407 mm |
| Base Material | Cast Iron | Application Range | Standard insert holder 00760143: 28.3″ |
| Battery Type | Lithium-ion rechargeable batteries | Squareness | 0.0004″ / 0.010 mm |
| Counter Type | LCD |
Product Features
| Remarks | •Electronically adjustable measuring force 0.75/1.5 (N) •Lithium-ion rechargeable batteries •Cast iron base for optimal stability •RS232 and USB interfaces •Measures heights, diameters, perpendicularity, centerlines Min/Max/Delta •Resolution 0.00005″/0.001 mm •Repeatability (2s): 0.00008″/0.002 mm (ÿ 0.00016″/0.004 mm) •Includes charging unit, measuring insert with ruby ball ÿ4mm, probe holder elbow ÿ8mm, setting gage, user's manual, test certificate. | Country of Origin | SWITZERLAND |
Shipping Info
Hazard Code
5C
Shipping Notes
No restriction or additional charges for UPS Ground / No UPS Air shipments allowed
Package Weight
80
