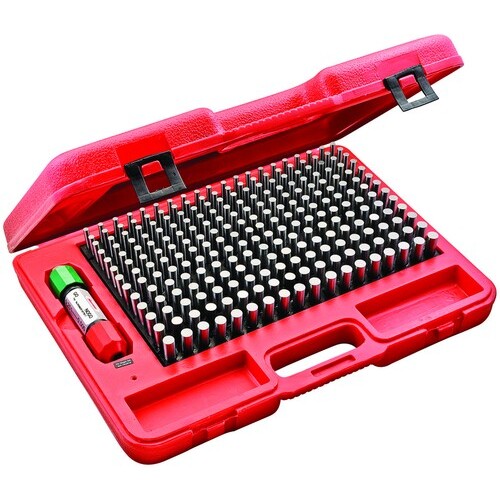

Gage Pin Set - 0.251″ to 0.500″ - Plus (Go) Fit–250 Pieces
| Type | Gage Pin Set | Increments | 0.001″ |
| Number of Pieces | 250 | Tolerance Type | Plus (Go) |
| Minimum Diameter | 0.2510″ | Tolerance | 0.0002″ |
| Maximum Diameter | 0.5000″ | Weight | 22 lbs |
| Class | ZZ |
Product Features
| Remarks | •Color coded, fully adjustable, Go/No-Go gage handle furnished with each set •Sets are supplied in rugged, high impact protective cases with each space marked for the appropriate gage •Full inspection report with every set, on each individual gage pin •0.001 Increment sets •Each pin is centerless lapped to a 10 RA micro-inch finish and is clearly etched with the stated size •All gages are 2 inches long, centerless lapped, and hardened to RC 60/62 •All sharp corners are broken •Manufactured to a .0002 tollerance~ | Country of Origin | China |
Shipping Info
Package Length
20.10000
Package Width
15.30000
Package Height
4.50000
Package Weight
24.2
