S4000-060 .011-.060″
| Type | Gage Pin Set | Increments | 0.001″ |
| Number of Pieces | 50 | Tolerance Type | Plus (Go) |
| Minimum Diameter | 0.0110″ | Tolerance | 0.0002″ |
| Maximum Diameter | 0.0600″ | Weight | 3 lbs |
| Class | ZZ |
Product Features

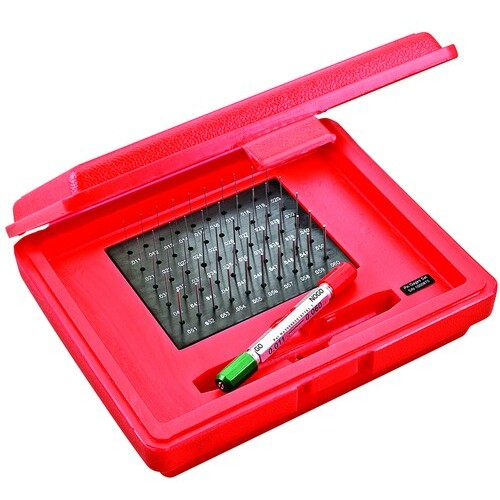

| Remarks | •Color coded, fully adjustable, Go/No-Go gage handle furnished with each set •Sets are supplied in rugged, high impact protective cases with each space marked for the appropriate gage •Full inspection report with every set, on each individual gage pin •0.001 Increment sets •Each pin is centerless lapped to a 10 RA micro-inch finish and is clearly etched with the stated size •All gages are 2 inches long, centerless lapped, and hardened to RC 60/62 •All sharp corners are broken •Manufactured to a .0002 tollerance | Country of Origin | USA |
Shipping Info
Package Length
9.00000
Package Width
7.40000
Package Height
2.90000
Package Weight
1.332
