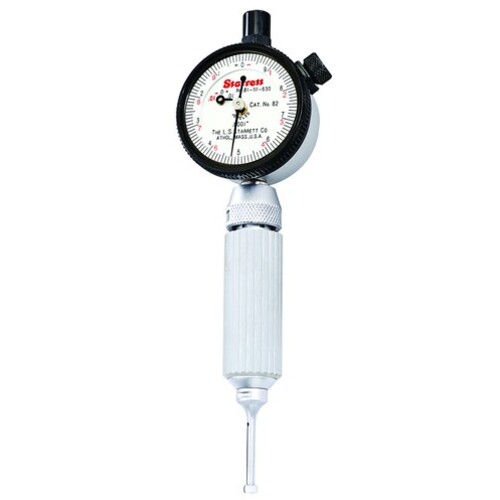

Starrett 82AZ Dial Bore Gage with Split Ball Contacts, .107-.266″ Range, .0001″ Graduations, Viny - Steel Case
| Type | Dial Bore Gage | Model No | 82AZ |
| Minimum Measurement | 0.107″ | Included | Finished wood case |
| Maximum Measurement | 0.266″ | Number of Anvils/Rods | 5 |
| Graduation | 0.0001″ | Probe Type | Hard chrome plated & polished |
| Depth | 13/16″ |
Product Features
| Remarks | •This gage measures the diameter of any hole within range of its interchangeable probes •With the indicator set to the nominal dimension and its dial adjusted to zero, the probe is inserted in the hole with variations to .0001″ read on the indicator •Since measurements are taken by comparison, a set master such as gage blocks or bench type micrometer should be used as a reference standard. | Country of Origin | USA |
Shipping Info
Package Length
8.00000
Package Width
2.50000
Package Height
2.50000
Package Weight
1.646
