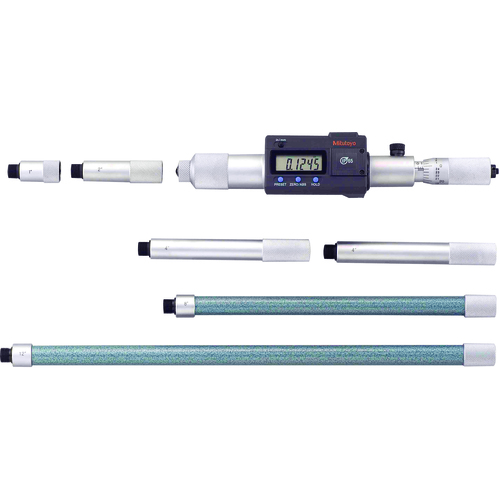

8″-40″ Range-0.001″ Gradiation - Carbide Tipped Measuring Face - Electronic Tubular Inside Micrometer
| Type | Electronic Tubular Inside Micrometer | Includes | LCD display |
| Minimum Measurement | 8″ / 200 mm | Model No | 337-303 |
| Maximum Measurement | 40″ / 1000 mm | Measuring Range | 8″-40″ / 200 mm-1000 mm |
| Accuracy | +/- (0.00012″ +(0.00004xR/2)) *RMax measuring length (inch) fraction rounded up. | Micrometer Type | Inside |
| Thimble Type | Friction | Resolution | 0.0001″ / 0.001 mm |
| Measuring Face Material | Carbide | Head Travel | 1 |
| Maximum Extension Rod Length | 1″, 2″, 4″ (2 pieces), 8″, 12″ | Number of Anvils/Rods | 6 |
Product Features
| Remarks | •SPC output •LCD display •Hold Zero/ABS •Inch/metric conversion •Preset push-button •Metal extension rods with their own internal standards •Head travel 1″ •.0001″/0.001mm Graduation | Country of Origin | Japan |
Shipping Info
Package Weight
2.293
