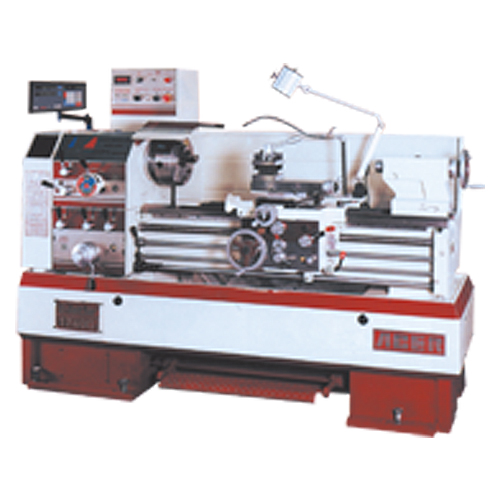

Electronic Variable Speed Lathe - Model 1760EL–17″ Swing–60″ Between Centers–7.5 hp, 220V Motor
| Swing Distance | 17″ | Minimum Spindle Speed | 25 RPM |
| Distance Between Centers | 60″ | Cross Slide Travel | 8-5/8″ |
| Horsepower | 7 1/2 hp | Swing Over Gap | 26″ |
| Voltage | 220 V | Tailstock Taper | 4MT |
| Phase | 3 Phase | Model No | 1760EL |
| Spindle Taper | 4MT | Spindle Type | D1-6 |
| Spindle Hole Diameter | 2-1/4″ | Swing Over Crossslide | 9-5/8″ |
| Weight | 3,950 lbs | Inch Thread Range | 4-56 TPI (36 changes) |
| Maximum Spindle Speed | 2,200 RPM | Metric Thread Range | 0.50-7 mm (22 changes) |
Product Features
| Remarks | •Model 1760 EVS Characteristics: Infinite 25–2200 (3 gear range) constant spindle speed. Easy change in no time (4 Sec.) High efficient 7.5 H.P. spindle motor for high torque output C.N.C. vector type A.C. frequency drive (no power loss) •Includes: 1760: 10 3-jaw chuck, 4-way tool post, steady rest, halogen worklight, chuck guard, splash guard, 14 face plate & 3-jaw and 4-jaw adapter plate. •Characteristics For Both EVS Lathes: Accept both single phase and three phase power Low maintenance and down time cost due to fewer gears in headstock Constant surface speed (optional) Electronic and mechanical brake for fast spin spindle stops internal threading No R.P.M. gear changer break down, accurate reading on R.P.M. to prolong tool life Spindle speed could be adjusted to best condition during cutting •F.O.B. ORANGE, CA •1 Year Warranty | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
3950.0000
