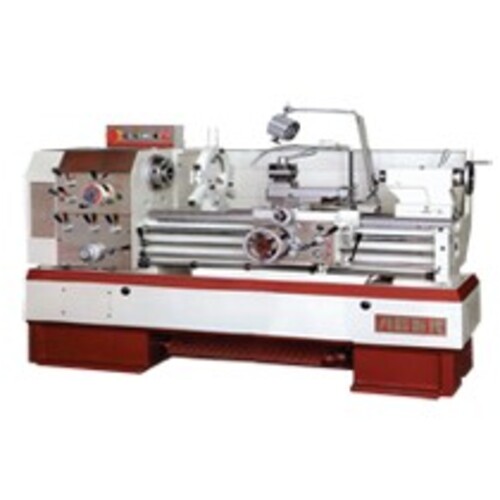

Electronic Variable Speed Lathe - Model 1760EL–17″ Swing–60″ Between Centers–7.5 hp, 440V Motor
| Swing Distance | 17″ | Minimum Spindle Speed | 25 RPM |
| Distance Between Centers | 60″ | Cross Slide Travel | 8-5/8″ |
| Horsepower | 7.5 hp | Swing Over Gap | 26″ |
| Voltage | 440 V | Tailstock Taper | 4MT |
| Phase | 3 Phase | Model No | 1760EL4 |
| Spindle Taper | 4MT | Spindle Type | D1-6 |
| Spindle Hole Diameter | 2-1/4″ | Swing Over Crossslide | 9-5/8″ |
| Weight | 3,950 lbs | Inch Thread Range | 4-56 TPI (36 changes) |
| Maximum Spindle Speed | 2,200 RPM | Metric Thread Range | 0.50-7 mm (22 changes) |
Product Features
| Remarks | •Accept both single phase and three phase power •Low maintenance and down time cost due to fewer gears in headstock •Constant Surface Speed (optional) •Electronic and mechanical brake for fast spin spindle stops internal threading •No RPM gear changer break down, accurate reading on R.P.M. to prolong tool life •Spindle speed could be adjusted to best condition during cutting •Save energy cost up to 35% •17″ Models are also available in 40″ and 80″ Center Distance •1 Year Warranty •Standard Equipment: 10″ 3-Jaw chuck, 4-way tool post, steady rest, halogen worklight, chuck guard, splash guard, 14″ face plate & 3-Jaw and 4-Jaw adapter plate. | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
3950.0000
