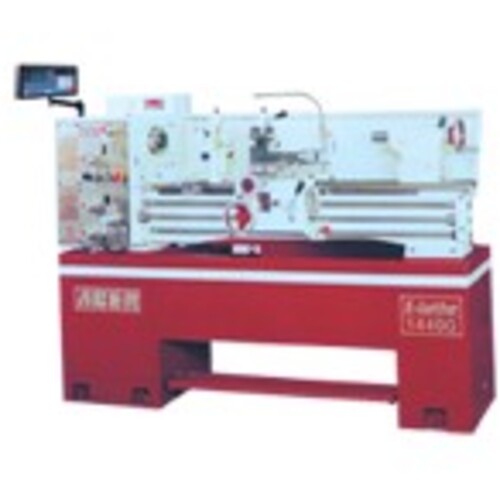

Electronic Variable Speed Lathe w/ CCS - Model 1440GEVS2–14″ Swing–40″ Between Centers–3 hp, 220V Motor
| Swing Distance | 14″ | Minimum Spindle Speed | 36 RPM |
| Distance Between Centers | 40″ | Cross Slide Travel | 8-5/8″ |
| Horsepower | 3 hp | Swing Over Gap | 20-3/4″ |
| Voltage | 220 V | Tailstock Taper | 3MT |
| Phase | 3 Phase | Model No | 1440GEVS |
| Spindle Taper | 3MT | Spindle Type | D1-4 |
| Spindle Hole Diameter | 1-1/2″ | Swing Over Crossslide | 8-3/4″ |
| Weight | 1,520 lbs | Inch Thread Range | 3-56 TPI (32 changes) |
| Maximum Spindle Speed | 2,200 RPM | Metric Thread Range | 0.40-7 mm (30 changes) |
Product Features
| Remarks | •EVS Lathe with Constant Surface Speed •Digital Readout Standard Features CSS (Constant Surface Speed) - Provides an output that can be applied to an AC inverter spindle drive. The system uses the scale feedback to automatically control the spindle RPM. This ensures a constant surface speed. No need to stop machine to measure the part. •Advantages of Constant Surface Speed Optimum surface cutting speeds lead to improved tool life and less scrap Provides finer surface finish Permits use of high performance ceramic tooling Machine dials eliminated - fewer errors - less scrap •F.O.B. ORANGE, CA | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
2320
