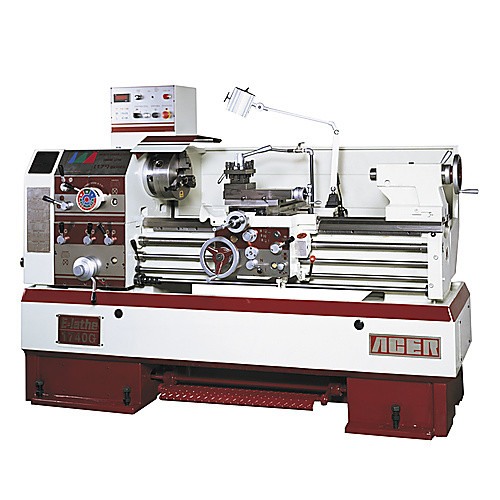

Electronic Variable Speed Lathe w/ CCS - Model 1740GEVS2–17″ Swing–40″ Between Centers–7.5 hp, 220V Motor
| Swing Distance | 17″ | Minimum Spindle Speed | 25 RPM |
| Distance Between Centers | 40″ | Cross Slide Travel | 8-5/8″ |
| Horsepower | 7.5 hp | Swing Over Gap | 26″ |
| Voltage | 220 V | Tailstock Taper | 4MT |
| Phase | 3 Phase | Model No | 1740GEVS |
| Spindle Taper | 4MT | Spindle Type | D1-6 |
| Spindle Hole Diameter | 2-1/4″ | Swing Over Crossslide | 9-5/8″ |
| Weight | 3,500 lbs | Inch Thread Range | 4-56 TPI (36 changes) |
| Maximum Spindle Speed | 2,200 RPM | Metric Thread Range | 0.50-7 mm (22 changes) |
Product Features
| Remarks | •Constant Surface Speed - Provides an output that can be applied to an AC inverter spindle drive. •Uses a DRO and the Precision Scale feedback to automatically control spindle RPM with the Highest Accuracy •Optimum surface cutting speeds improving tool life •Better surface finishes •Includes a Digital Readout as Standard Equipment •1 Year Warranty | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
3950
