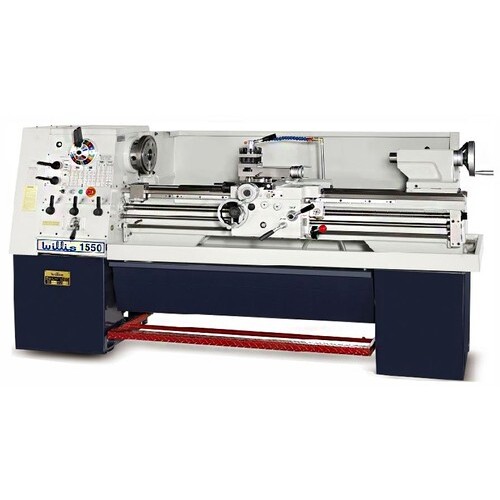

Gear Head Lathe - 15″ × 50″
| Swing Distance | 15-1/4″ | Cross Slide Travel | 9.2″ |
| Distance Between Centers | 50″ | Swing Over Gap | 24″ |
| Horsepower | 7.5 hp | Tailstock Taper | 4MT |
| Voltage | 220 V | Maximum Thread Per Inch | 2″ |
| Phase | 3 Phase | Minimum Threads Per Inch | 72 |
| Spindle Taper | D1-6 | Model No | 1550 |
| Spindle Hole Diameter | 2-1/8″ | Spindle Type | D1-6 |
| Number of Spindle Speeds | 16 | Swing Over Crossslide | 9-1/2″ |
| Weight | 3,300 lbs | Inch Thread Range | 2-72 TPI (45 changes) |
| Maximum Spindle Speed | 2,000 RPM | Metric Thread Range | 0.20-14 mm (39 changes) |
| Minimum Spindle Speed | 25 RPM |
Product Features
| Remarks | •Hardened and ground bedways •Hardeded and ground gears and shafts •Camlock spindle nose •Footbrake, Emergency stop and low volt controls •Universal gearbox •Feedrod overload clutch •Flood coolant •Full length rear splash guard •Large 24″ Swing in Gap •Inch and Metric Threading Capabilities •Machine is dual 230/460 voltage, wires for 230 volt •ONE YEAR WARRANTY | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
3300
