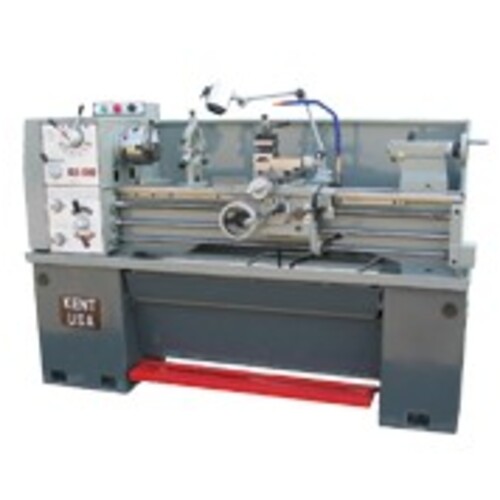

Geared Head Lathe - Model KLS1340A - D1-4 Camlock Spindle-13″ Swing-40″ Between Centers-2 hp Motor
| Swing Distance | 13″ | Cross Slide Travel | 6-1/2″ |
| Distance Between Centers | 40″ | Swing Over Gap | 18-3/4″ |
| Horsepower | 2 hp | Tailstock Taper | 3MT |
| Voltage | 230 V | Maximum Thread Per Inch | 4″ |
| Phase | 1 Phase | Minimum Threads Per Inch | 56 |
| Spindle Taper | D1-4 Camlock | Model No | KLS1340A |
| Spindle Hole Diameter | 1-1/2″ | Spindle Type | D1-4 Camlock |
| Number of Spindle Speeds | 8 | Swing Over Crossslide | 7-1/4″ |
| Weight | 1,300 lbs | Inch Thread Range | 4-56 TPI |
| Maximum Spindle Speed | 2,000 RPM | Metric Thread Range | 0.40-7 mm (32 changes) |
| Minimum Spindle Speed | 70 RPM |
Product Features
| Remarks | •Hardened and ground gears in headstock •Tapered roller bearings •Jog button for easy gear changes •V-Way bed design is induction hardened and ground •Inch/Metric threading capability •Foot Brake •ISO 9001 Certified •Has a single phase motor •ONE YEAR WARRANTY | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Length
80.00000
Package Width
35.00000
Package Height
61.00000
Package Weight
1100
