Pk Series Mammoth Heavy Duty Big Bore Lathe - 40″ × 120″
| Swing Distance | 40″ | Minimum Spindle Speed | 5 RPM |
| Distance Between Centers | 120″ | Cross Slide Travel | 26″ |
| Horsepower | 40 hp | Swing Over Gap | 58″ |
| Voltage | 220 V/460 V | Tailstock Taper | 6MT |
| Phase | 3 Phase | Model No | PK40120-12 |
| Spindle Taper | 6MT | Spindle Type | A2-20 |
| Spindle Hole Diameter | 12″ | Swing Over Crossslide | 29″ |
| Weight | 23,000 lbs | Inch Thread Range | 1/2-28 TPI (60 changes) |
| Maximum Spindle Speed | 600 RPM | Metric Thread Range | 0.10-56 mm (60 changes) |
Product Features

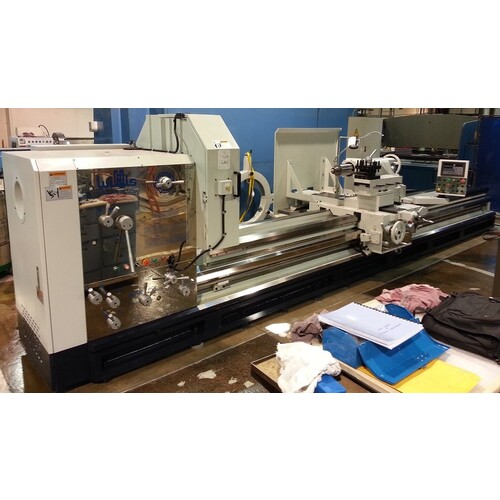

| Remarks | •12? spindle hole standard, other spindle bores are optional •18 spindle speeds or variable speed •Hardened and ground headstock gears •Electromagnetic spindle brake •Three hardened and ground bedways •Single piece bed casting •Six way power and rapid feed •Universal Gearbox for inch/metric thread •Massive 2 speed tailstock •Flood coolant system •Automatic oiler for slide/bedways •Halogen work light •Toolbox/tools •Machine is dual 230/460 voltage, wired for 230 volt •One Year Warranty •Willis 40″ × 120″ Lathe is shown with optional equipment. Willis Mammoth lathes are available 35″ thru 50″ swing bed lengths up to 400″. | Country of Origin | Taiwan |
Shipping Info
Package Weight
23000
