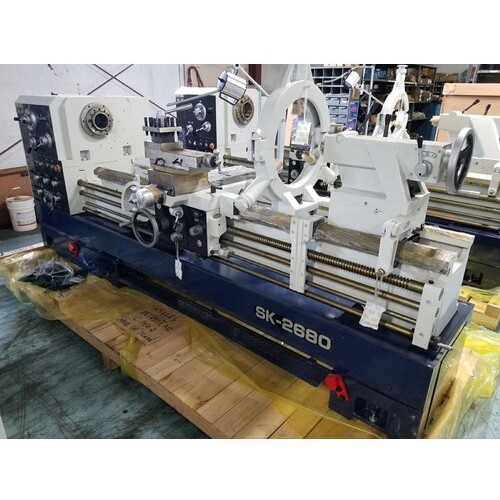

Sk Series Mammoth Heavy Duty Lathe - 26″ × 80″
| Swing Distance | 26″ | Minimum Spindle Speed | 20 RPM |
| Distance Between Centers | 80″ | Cross Slide Travel | 14-1/2″ |
| Horsepower | 15 hp | Swing Over Gap | 37″ |
| Voltage | 220 V/460 V | Tailstock Taper | 5MT |
| Phase | 3 Phase | Model No | SK2680 |
| Spindle Taper | 5MT | Spindle Type | A2-8 |
| Spindle Hole Diameter | 4″ | Swing Over Crossslide | 17″ |
| Weight | 7,400 lbs | Inch Thread Range | 2-28 TPI (36 changes) |
| Maximum Spindle Speed | 1,200 RPM | Metric Thread Range | 0.80-14 mm (37 changes) |
Product Features
| Remarks | •Totally enclosed universal gearbox •2 speed tailstock quill •Halogen work light •Hardened and ground bed ways •Inch/metric dual dials •12″ steady rest w/roller jaws •Foot brake •Flood coolant •Automatic bed stops •Gap bed •Feed rod with clutch •4-way tool post •Automatic and manual lubrication to bed ways and slide ways •Hardened and ground headstock gears and shafts •110v controls with no volt release and E-stop •Machines are dual 230/460 voltage, wired for 230 volt •ONE YEAR WARRANTY | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
7400
