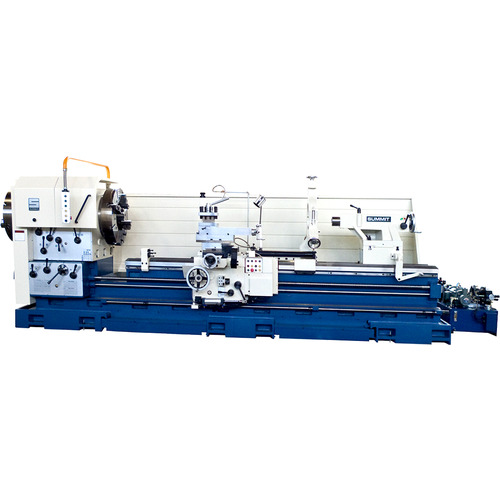

Oil Country Lathe - 42″ × 120″ - A2-20 Spindle Mount-12.2″ Spindle Bore-30 hp 220V 3-Phase Motor-20,790 lbs
| Swing Distance | 41.7″ | Cross Slide Travel | 21.3″ |
| Distance Between Centers | 120″ | Swing Over Gap | 63.40″ |
| Horsepower | 30 hp | Tailstock Taper | 6MT |
| Voltage | 220 V | Maximum Thread Per Inch | 1″ |
| Phase | 3 Phase | Minimum Threads Per Inch | 16 |
| Spindle Taper | A2-20 | Model No | 42-12-120 |
| Spindle Hole Diameter | 12.2″ | Spindle Type | A2-20 |
| Number of Spindle Speeds | 12 | Swing Over Crossslide | 29-1/2″ |
| Weight | 20,790 lbs | Inch Thread Range | 1-16 TPI (48 changes) |
| Maximum Spindle Speed | 300 RPM | Metric Thread Range | 0.20-30 mm (48 changes) |
| Minimum Spindle Speed | 4 RPM |
Product Features
| Remarks | •Quick Change Gear Box Will Cut Inch And Metric Threads •Hardened & Precision Ground Extra Wide Bed Ways •4 Way Rapid Traverse •Removable Gap •Air Kick Out For Semi-Automatic Threading •Two Speed TailstockINCLUDED ACCESSORIES: •Front & Rear 4 Jaw Chucks •Steady Rest •Follow Rest •Full Length Splash Guard •Chuck Guards •Halogen Work Light •Taper Attachment •Coolant System •Thread Dial | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
20790
