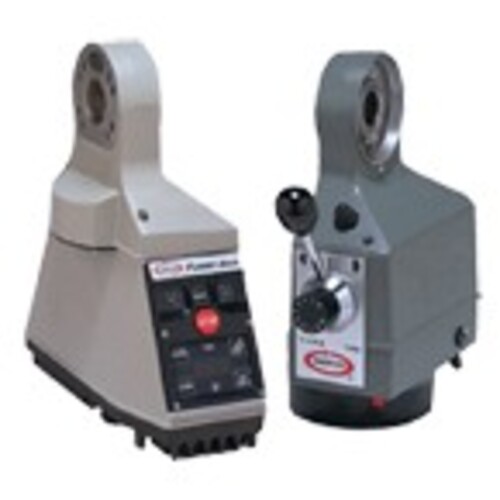

Table Power Feed - 140 inch/lbs - For All Purpose

| Axis | X, Y, Z | Horsepower | 3 hp |
| For Use With | General Purpose | Maximum Peak Torque | 140″ |
| Maximum Feed Rate | 75-25 IPM / 19-635 mm/min | Weight | 15 lbs |
| Gear Rate | 72:01:00 |
Product Features
| Remarks | •Semi-automated machining on Class 1 mills to 3 hp.
•Peak Torque (half-wave series motor): to 140 in.- lb. / 15.8 NM torque
•Intermittent Torque: 105 in.- lb. / 11.9 NM
•Continuous Torque: 90 in.- lb. / 10.2 NM
•Variable Feed Rate: .75–25 IPM / 19–635 mm/min (table & cross), .5–12 IPM / 13–305 mm/min (knee)
•Gear Reduction Ratio (motor to screw shaft): 72:1.
•Helical gearing and torque limiting friction safety clutch with new and improved gear
•Electrical: 110V, 50/60 Hz, 2.5A.
•Approximate weight: 15 lb. / 6.8 kg. | Country of Origin | USA |
Shipping Info
Package Length
12.30000
Package Width
7.40000
Package Height
14.50000
Package Weight
12.600
