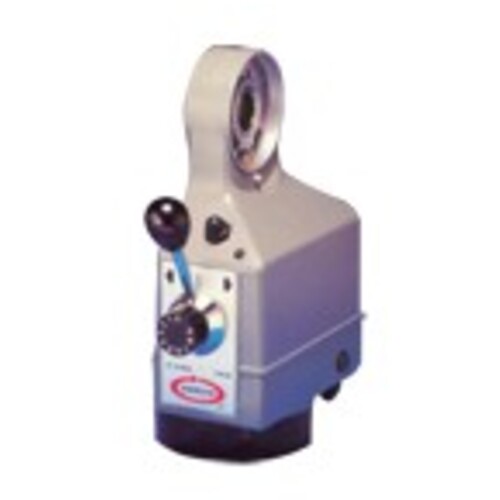

Table Power Feed - Type 140 - X-Axis
| Axis | X | Horsepower | 3 hp |
| For Use With | Birmingham 942, 1050, Kent 2S | Maximum Peak Torque | 140″ |
| Maximum Feed Rate | 75-25 IPM / 19-635 mm/min | Weight | 15 lbs |
| Gear Rate | 72:01:00 |
Product Features
| Remarks | •Semi-automated machining on Class 1 mills to 3 hp. •Peak Torque (half-wave series motor): to 140 in.- lb. / 15.8 NM torque •Intermittent Torque: 105 in.- lb. / 11.9 NM •Continuous Torque: 90 in.- lb. / 10.2 NM •Variable Feed Rate: .75–25 IPM / 19–635 mm/min (table & cross), .5–12 IPM / 13–305 mm/min (knee) •Gear Reduction Ratio (motor to screw shaft): 72:1. •Helical gearing and torque limiting friction safety clutch with new and improved gear •Electrical: 110V, 50/60 Hz, 2.5A. •Approx. weight: 15 lb. / 6.8 kg. | Country of Origin | USA |
Shipping Info
Package Weight
13.500
