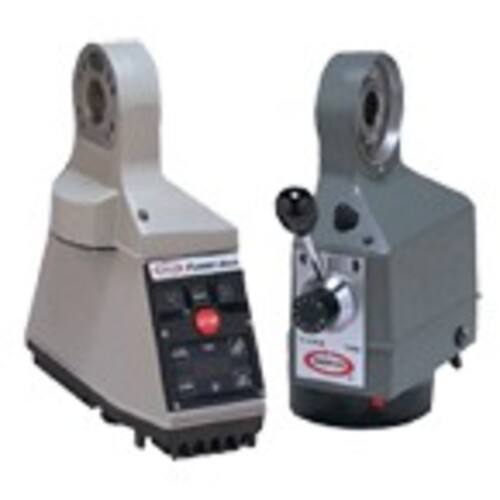

Table Power Feed - 150 inch/lbs - For All Purpose
| Axis | X, Y, Z | Horsepower | 3 hp |
| For Use With | General Purpose | Maximum Peak Torque | 150″ |
| Maximum Feed Rate | 50-35 IPM / 13-889 mm/min | Weight | 15 lbs |
| Gear Rate | 72:01:00 |
Product Features
| Remarks | •Semi-automated machining on Class 1 mills to 3 hp. •Peak Torque (full-wave SCR control compound DC motor): to 150 in.- lb. / 17 NM torque •Intermittent Torque: 120 in.- lb. / 13.6 NM •Continuous Torque: 100 in.- lb. / 11.3 NM •Variable Feed Rate: .50–35 IPM / 13–889 mm/min •Gear Reduction Ratio (motor to screw shaft): 72:1. •Helical gearing and torque limiting friction safety clutch with new and improved gear •Electrical: 110V, 50/60 Hz, 2.5A. •Approximate weight: 15 lb. / 6.8 kg. | Country of Origin | USA |
Shipping Info
Package Length
12.30000
Package Width
7.30000
Package Height
14.80000
Package Weight
12.650
