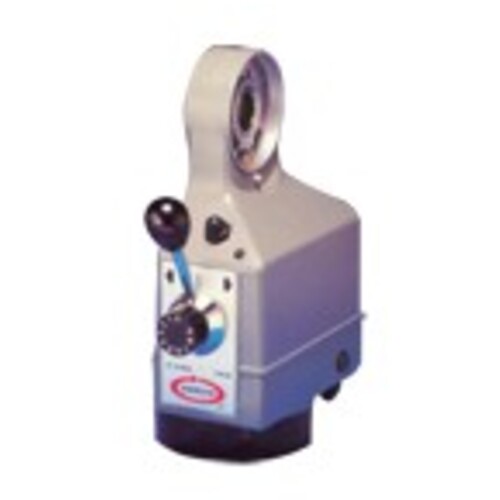

Table Power Feed - For Bridgeport Electronic

| Axis | X | Horsepower | 3 hp |
| For Use With | Bridgeport Electronic | Maximum Peak Torque | 150″ |
| Maximum Feed Rate | 50-35 IPM / 13-889 mm/min | Weight | 15 lbs |
| Gear Rate | 72:01:00 |
Product Features
| Remarks | •Semi-automated machining on Class 1 mills to 3 hp.
•Peak Torque (full-wave SCR control compound DC motor): to 150 in.- lb. / 17 NM torque
•Intermittent Torque: 120 in.- lb. / 13.6 NM
•Continuous Torque: 100 in.- lb. / 11.3 NM
•Variable Feed Rate: .50–35 IPM / 13–889 mm/min
•Gear Reduction Ratio (motor to screw shaft): 72:1.
•Helical gearing and torque limiting friction safety clutch with new and improved gear
•Electrical: 110V, 50/60 Hz, 2.5A.
•Approximate weight: 15 lb. / 6.8 kg. | Country of Origin | USA |
Shipping Info
Package Length
12.20000
Package Width
7.60000
Package Height
14.70000
Package Weight
15.800
