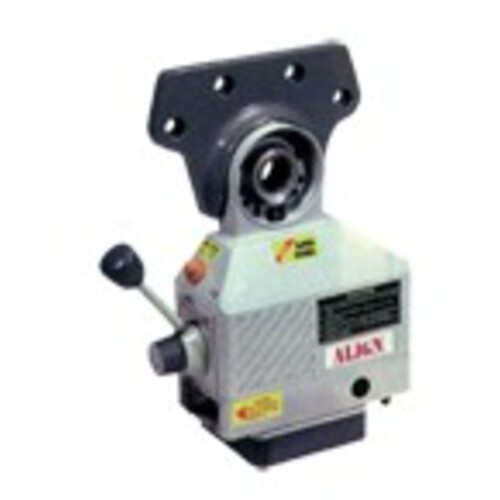

Table Power Feed - Model AL500SX; X-Axis
| Axis | X | Maximum Peak Torque | 780″ |
| For Use With | Bridgeport Style Mills | Weight | 15 lbs |
| Gear Rate | 4.8:1 |
Product Features
| Remarks | •Easily mounts to almost any Bridgeport type knee mill, no modification necessary. Circuit panel is designed to accept replaceable insert type connectors. Nylon clutch has built-in torque release to prevent damage in the case of too much resistance. Standard equipment includes: On/off switch, forward, reverse, rapid traverse, jog button, 8' line cord, plug & mounting hardware. •Speed range: 0 to 160 RPM •Bevel Drive Gear Rate: 4.8:1 •Torque rating: 780 IN-LB (900Kgf/cm) •Power: 1 Amp/1 Phase/110 Volt •Weight: 15 lbs. | Country of Origin | Taiwan |
Shipping Info
Package Length
10.80000
Package Width
7.00000
Package Height
14.60000
Package Weight
15
