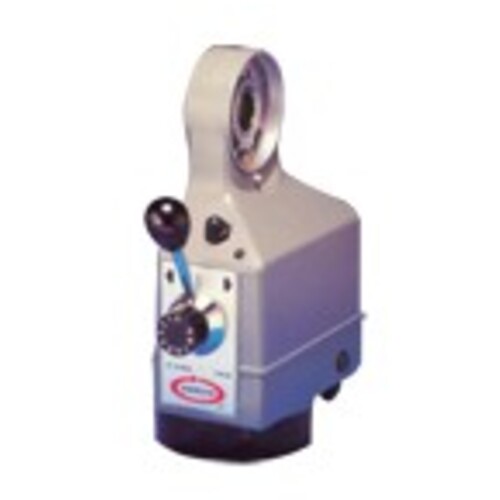

M-0280-200 SERVO
| Axis | Z | Horsepower | 5 hp |
| For Use With | Bridgeport Series I | Maximum Peak Torque | 200″ |
| Maximum Feed Rate | 5-12 IPM / 13-305 mm/min | Weight | 21 lbs |
| Gear Rate | 72:01:00 |
Product Features
| Remarks | •Semi-automated machining on Class 1 mills to 5 hp. •Peak Torque (half-wave series motor): to 200 in.- lb. / 22.6 NM torque •Intermittent Torque: 150 in.- lb. / 17 NM •Continuous Torque: 120 in.- lb. / 13 NM •Variable Feed Rate: .5–12 IPM / 13–305 mm/min (knee) •Rapid Traverse: 15IPM / 381 mm/min. (knee) •Gear Reduction Ratio (motor to screw shaft): 72:1. •Helical gearing and torque limiting friction safety clutch with new and improved gear •Electrical: 110V, 50/60 Hz, 4.0A. •Approximate weight: 21 lb. / 9.4 kg. | Country of Origin | USA |
Shipping Info
Package Length
7.80000
Package Width
12.80000
Package Height
23.40000
Package Weight
17.450
